EX00M16

EX00M16

SKU DOR5973744
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

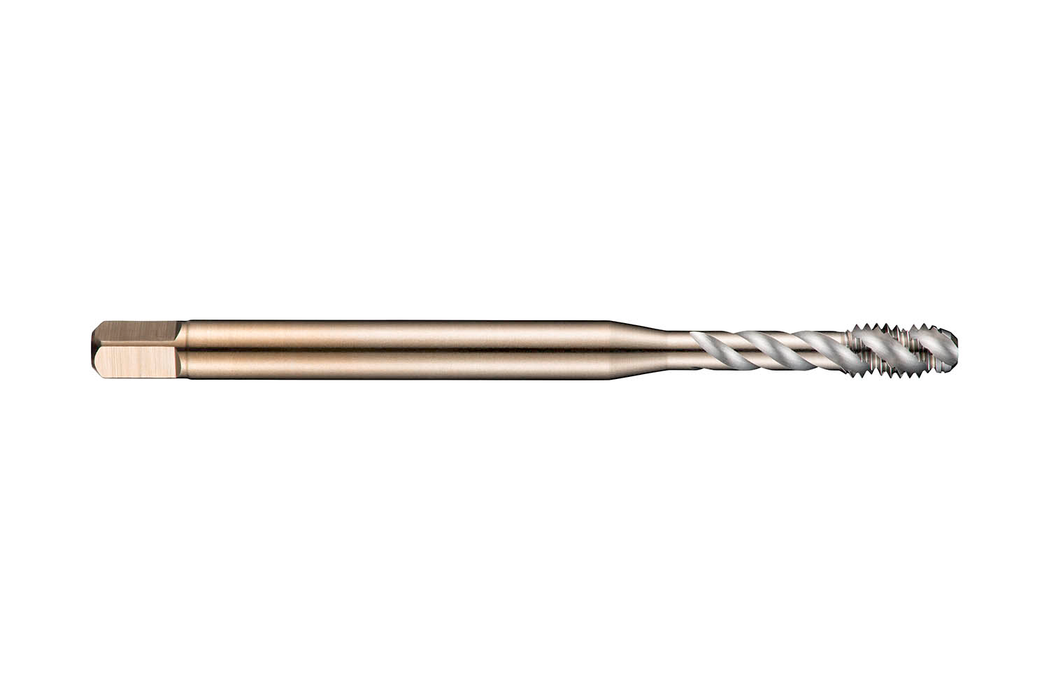

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$82.39 - $82.39
$82.39
$82.39 - $82.39
$82.39
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 4.3307

Connetion Diameter: 0.4724

Tool Direction: Right

Diameter Size: 16

Pitch - mm: 2.0

Pitch - in: 0.0787

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 136720

EAN: 7320760136720

MFG Part Number: 5973744
