EP206-32

EP206-32

SKU DOR5973745
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

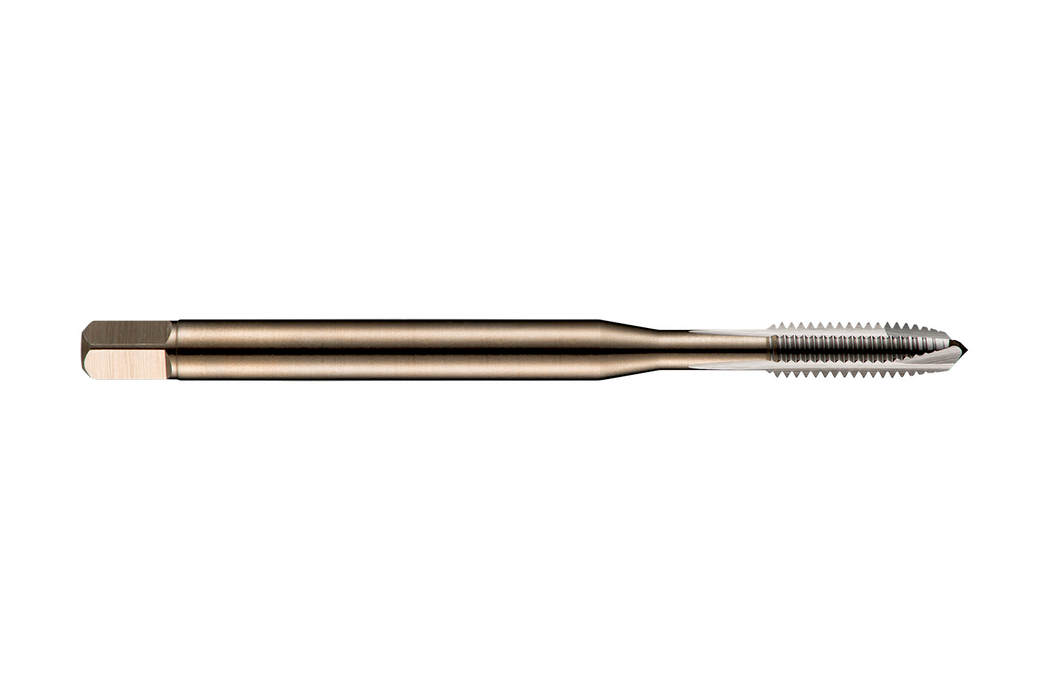

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 6 with 32 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 4.0mm shank and 3.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$43.28 - $43.28
$43.28
$43.28 - $43.28
$43.28
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.2047

Connetion Diameter: 0.1575

Tool Direction: Right

Diameter Size: 6

Thread Diameter - in: 0.138

Thread Diameter - mm: 3.505

TPI: 32.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 0.7874

Grade: Bright

EDP: 138045

EAN: 7320760138045

MFG Part Number: 5973745
