EX407/8

EX407/8

SKU DOR5973750
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

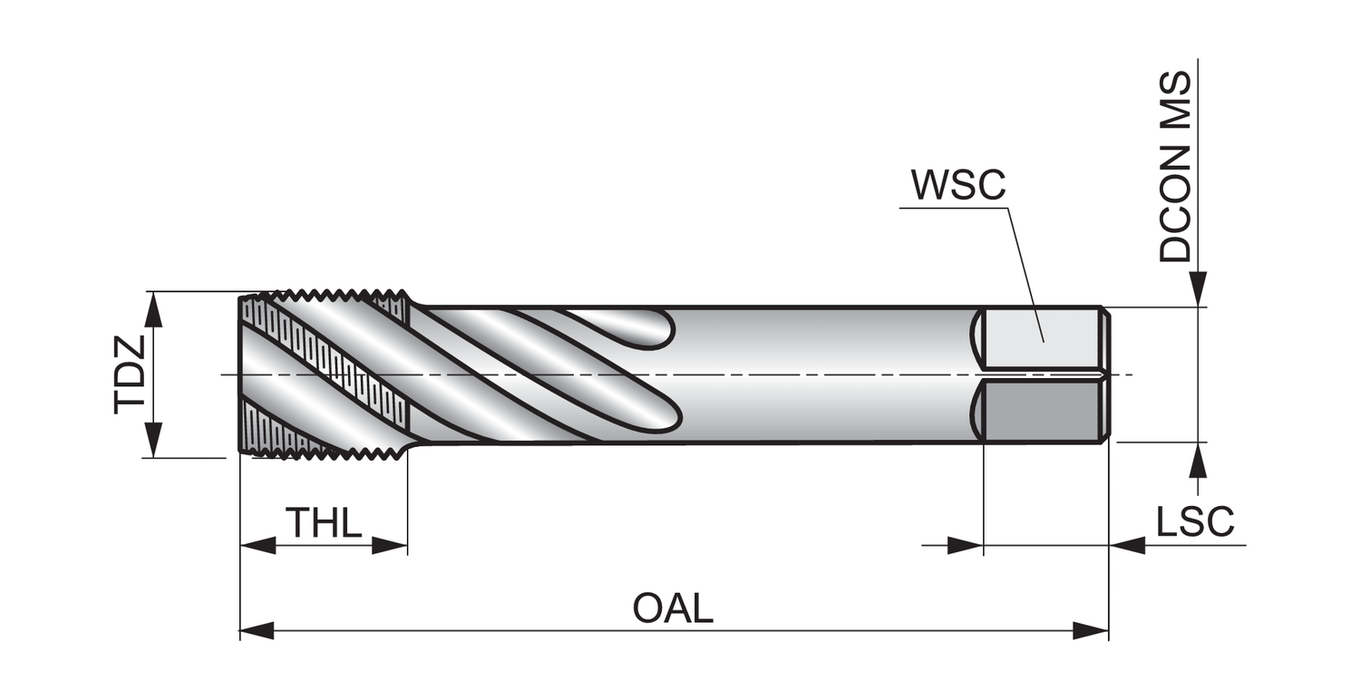

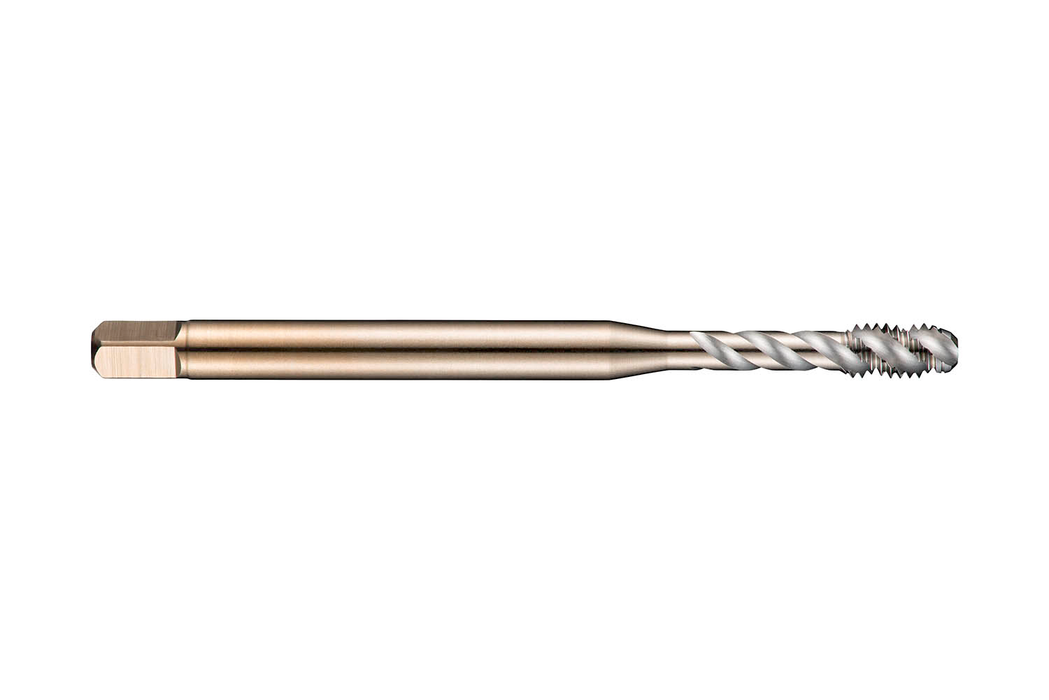

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Pipe thread G 7/8" with 14 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$296.69 - $296.69
$296.69
$296.69 - $296.69
$296.69
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 5.9055

Connetion Diameter: 0.8661

Tool Direction: Right

Diameter Size: 7/8

Thread Diameter - in: 1.189

Thread Diameter - mm: 30.201

TPI: 14.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 168608

EAN: 7320760168608

MFG Part Number: 5973750
