EX00M2

EX00M2

SKU DOR5973751
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

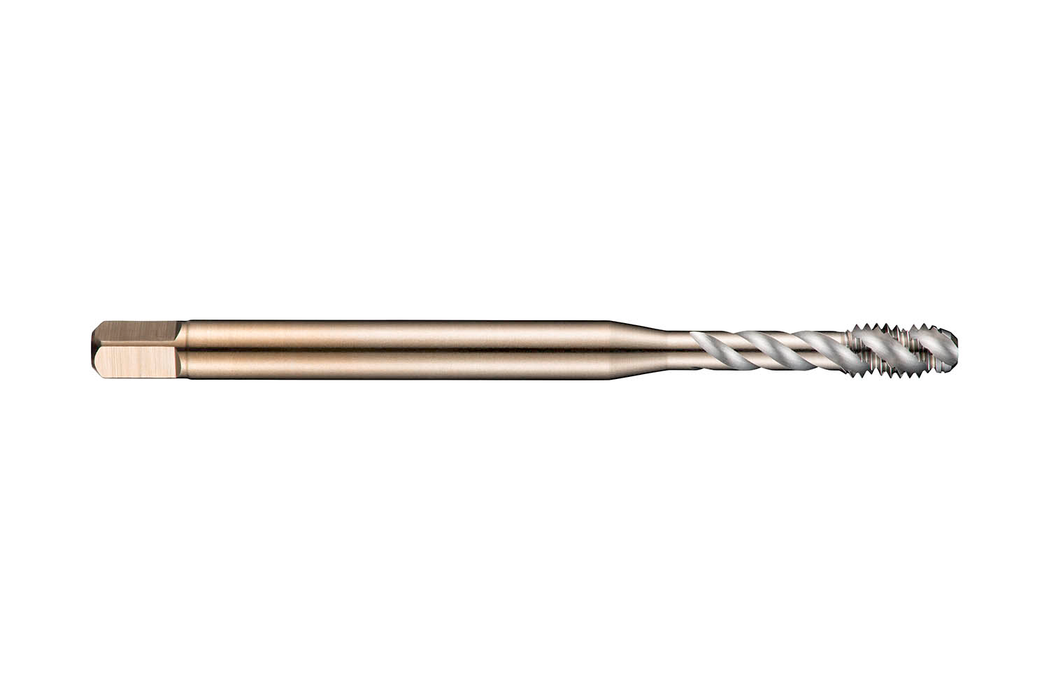

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$41.40 - $41.40
$41.40
$41.40 - $41.40
$41.40
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

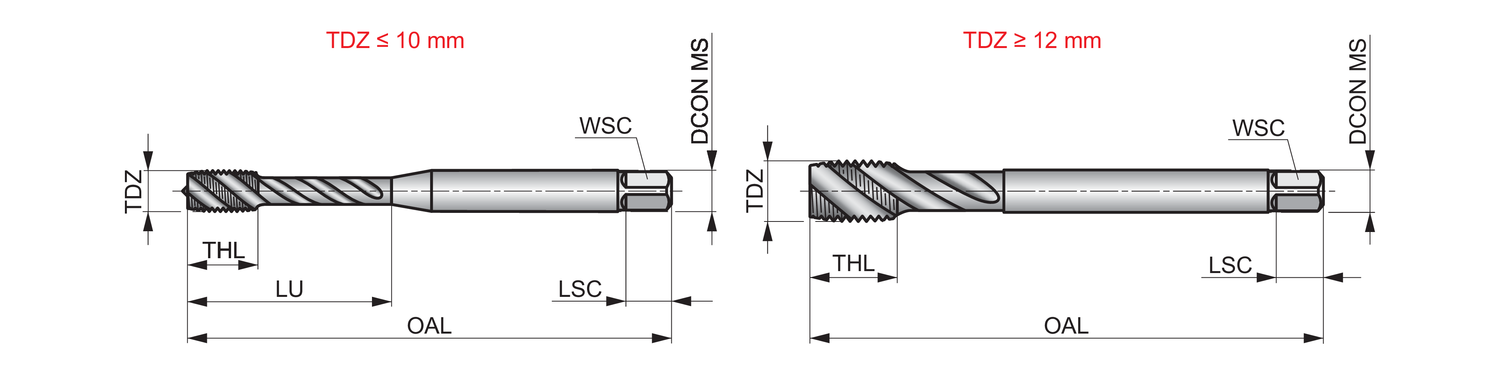

Material: HSS-E

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.7717

Connetion Diameter: 0.1102

Tool Direction: Right

Diameter Size: 2

Pitch - mm: 0.4

Pitch - in: 0.0157

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.3543

Grade: Bright

EDP: 137307

EAN: 7320760137307

MFG Part Number: 5973751
