EP211

EP211

SKU DOR5973754
by Dormer Pramet
Primary Use: P - Steel and Cast Steel Possible Use: M - Stainless Steel K - Cast Iron

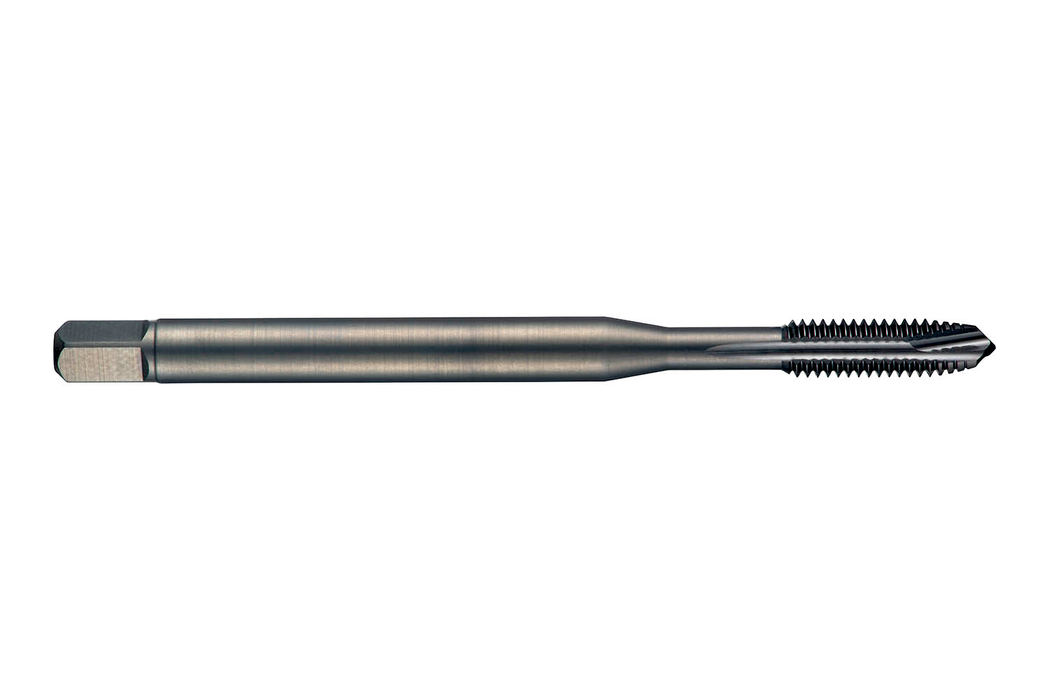

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1" with 8 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$241.42 - $241.42
$241.42
$241.42 - $241.42
$241.42
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 6.2992

Connetion Diameter: 0.7087

Tool Direction: Right

Diameter Size: 1"

Thread Diameter - in: 1.0

Thread Diameter - mm: 25.4

TPI: 8.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 138359

EAN: 7320760138359

MFG Part Number: 5973754
