E000M1.6

E000M1.6

SKU DOR5973759
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

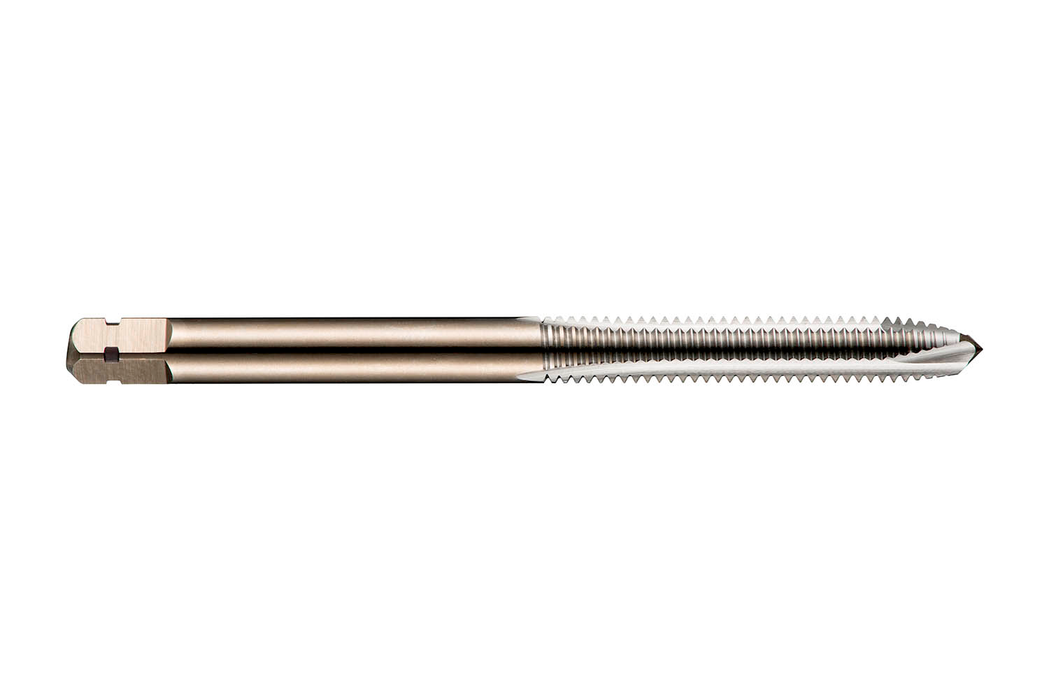

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M1.6 with 0.35 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.5mm shank and 2.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$46.59 - $46.59
$46.59
$46.59 - $46.59
$46.59
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.6142

Connetion Diameter: 0.0984

Tool Direction: Right

Diameter Size: 1.6

Pitch - mm: 0.35

Pitch - in: 0.0138

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.2756

Grade: Bright

EDP: 168769

EAN: 7320760168769

MFG Part Number: 5973759
