EP11M14X1.25

EP11M14X1.25

SKU DOR5973770
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$100.64 - $100.64
$100.64
$100.64 - $100.64
$100.64

Sold in packs of: 1

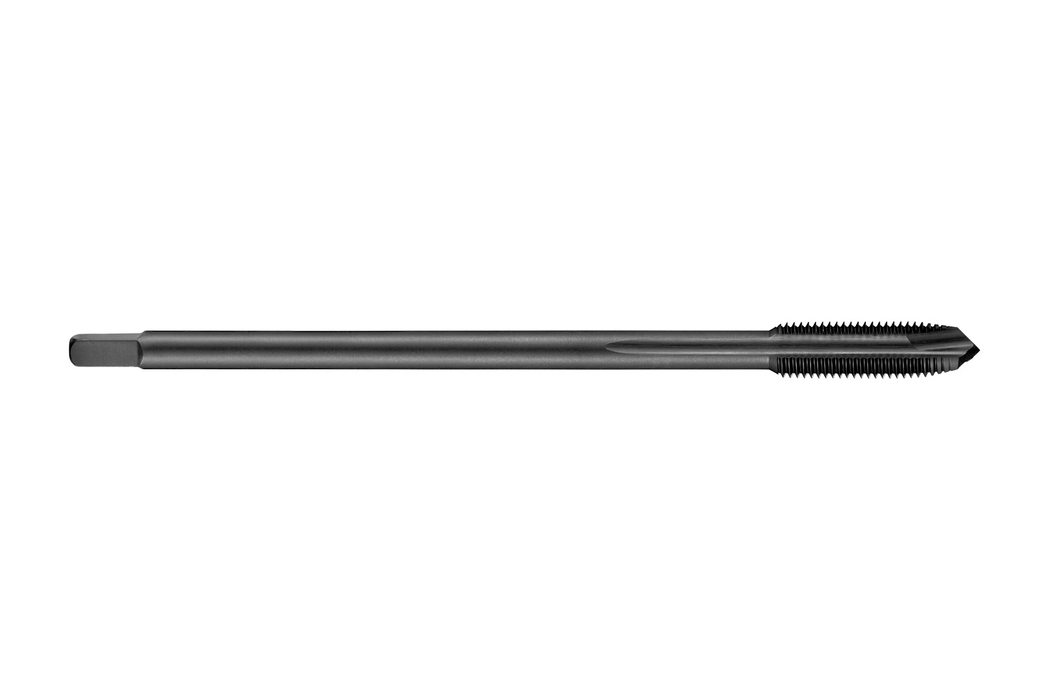

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M14 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)EP11M14X1.25
GradeSteam Tempered
Product Number5973770
Product FamilyEP11
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)MF - Metric fine
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
StandardDIN 374
Reference Numbers
EDP Number137840
EAN7320760137840
File Type Download
EP11M14X1.25 — Line Drawing PDF Download
