EP11M14X1.5

EP11M14X1.5

SKU DOR5973772
by Dormer Pramet
Primary Use: P - Steel and Cast Steel Possible Use: M - Stainless Steel K - Cast Iron

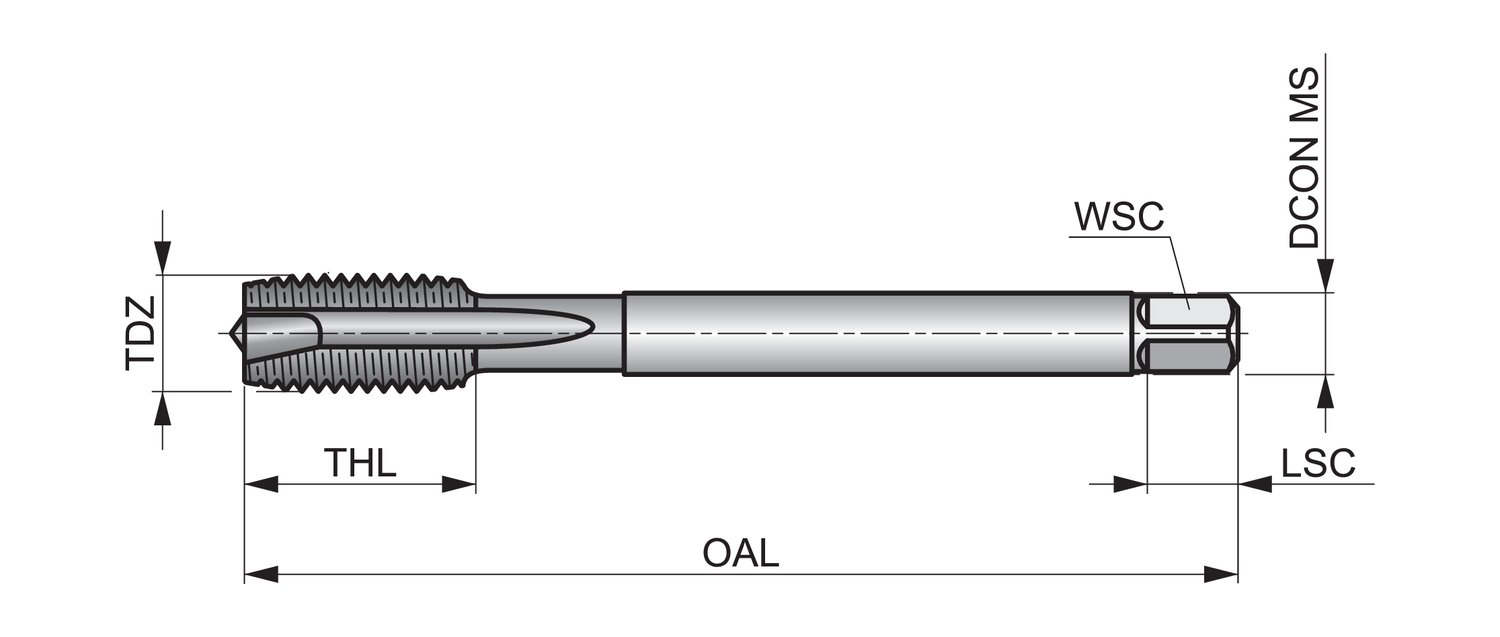

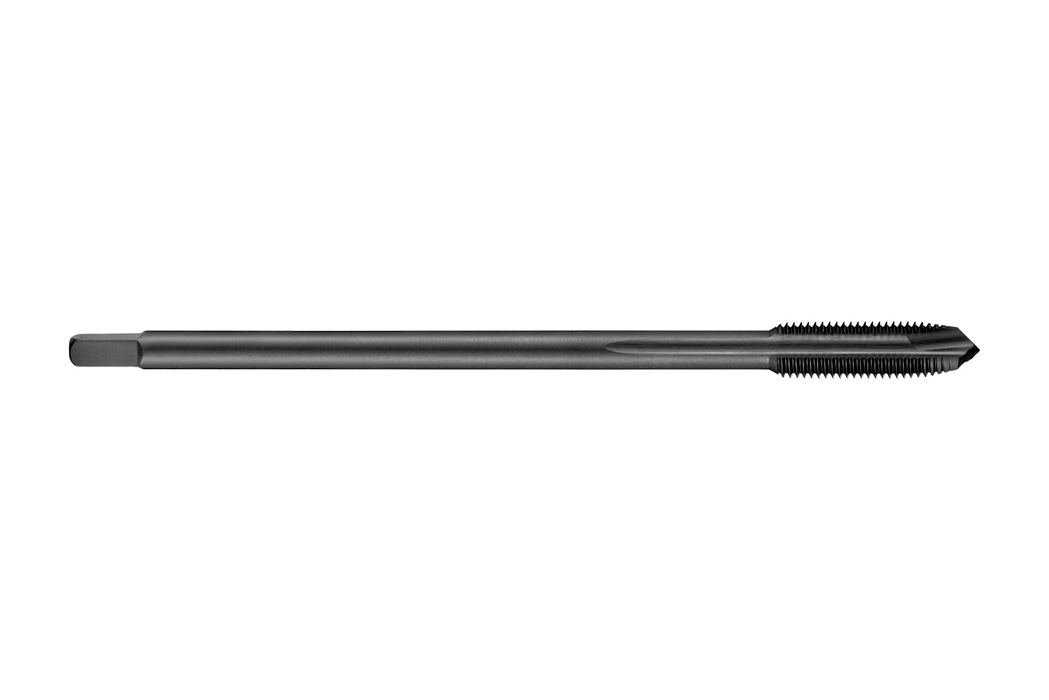

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M14 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-7 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$77.69 - $77.69
$77.69
$77.69 - $77.69
$77.69
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.937

Connetion Diameter: 0.4331

Tool Direction: Right

Diameter Size: 14

Pitch - mm: 1.5

Pitch - in: 0.0591

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 137857

EAN: 7320760137857

MFG Part Number: 5973772
