E006M8

E006M8

SKU DOR5973782
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.80 - $18.80
$18.80
$18.80 - $18.80
$18.80

Sold in packs of: 1

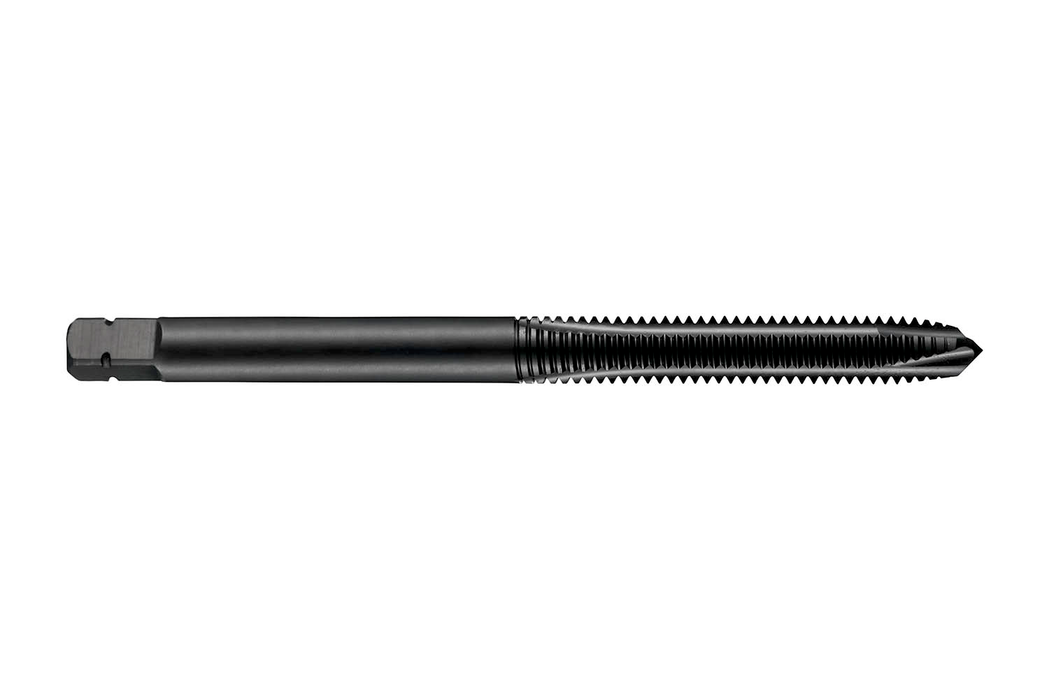

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.3180" shank and 0.2380" square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E006M8
GradeSteam Tempered
Product Number5973782
Product FamilyE006

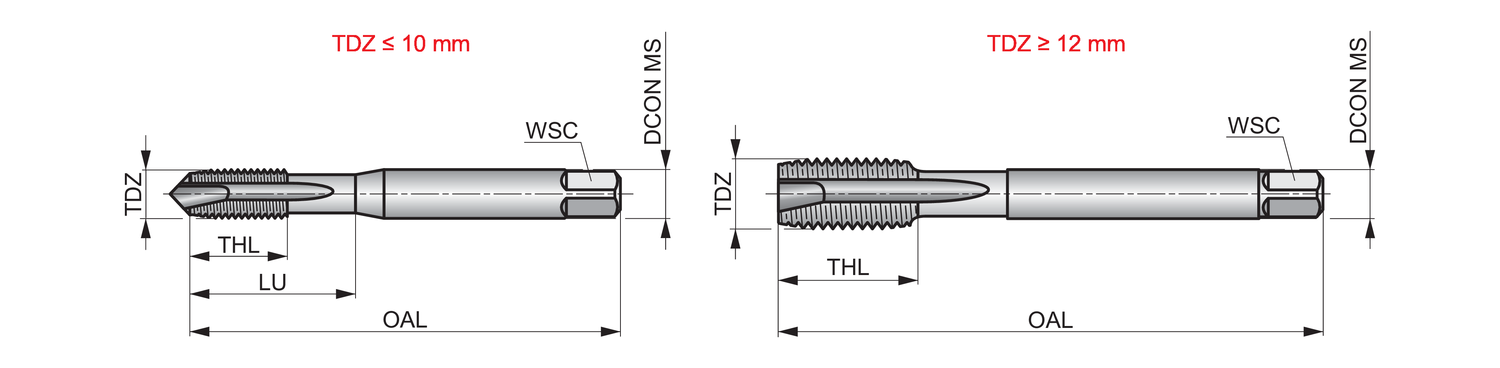

Dimensions
Overall Length — in (OAL)2.7188"
Overall Length — mm (OAL)69.06 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.1891"
Usable Length — mm (LU)30.2 mm
Connection Dia. — in (DCON)0.318"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
StandardANSI
Reference Numbers
EDP Number580516
EAN7320760580516
File Type Download
E006M8 — Line Drawing PDF Download
