E0311/2

E0311/2

SKU DOR5973800
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$67.49 - $67.49
$67.49
$67.49 - $67.49
$67.49

Sold in packs of: 1

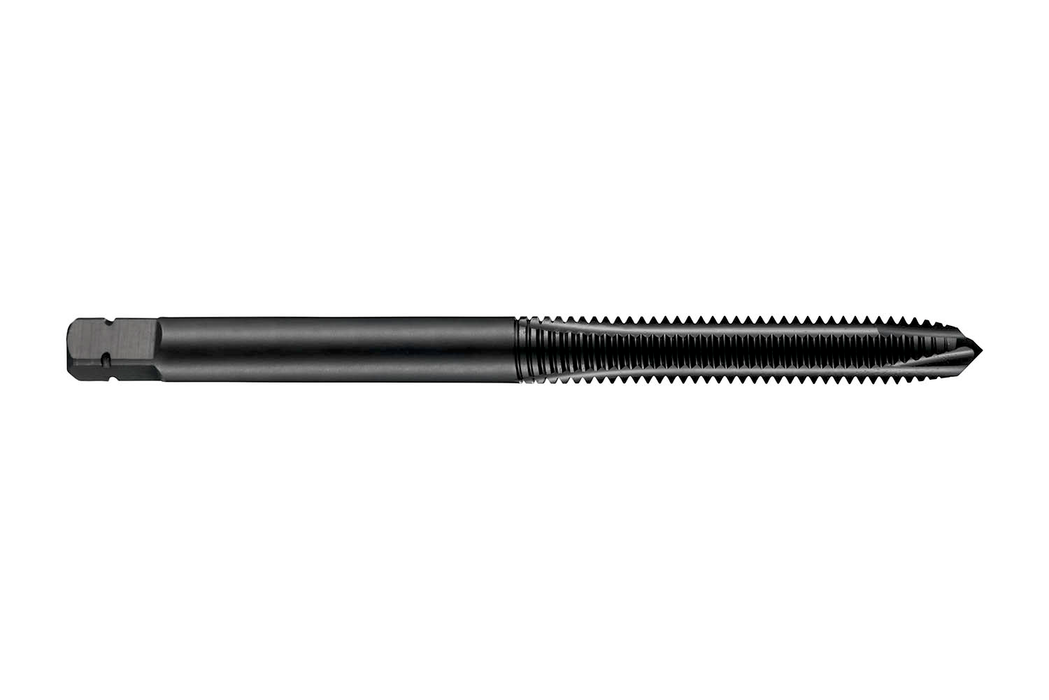

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/2" with 20 TPI and 2B class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E0311/2
GradeSteam Tempered
Product Number5973800
Product FamilyE031

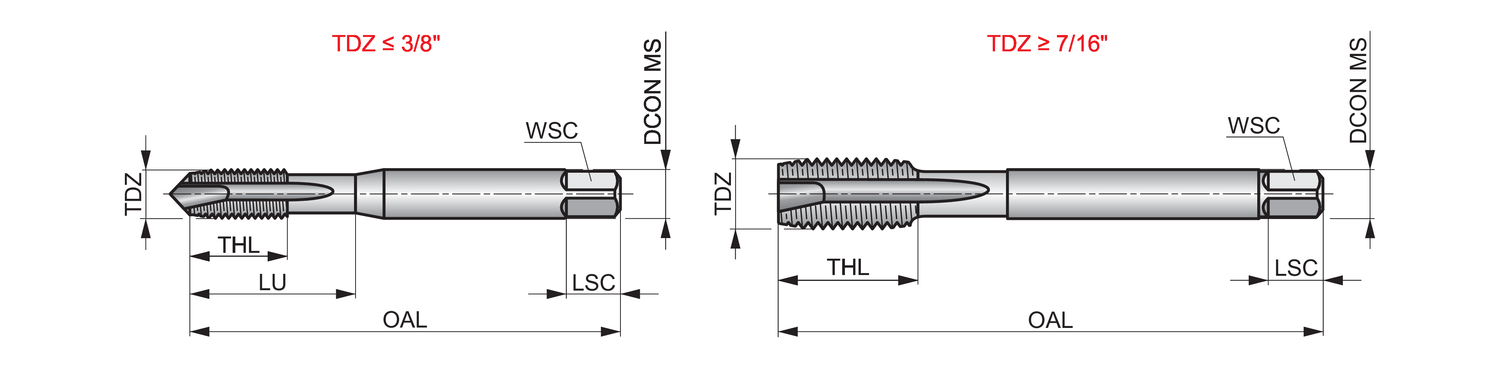

Dimensions
Overall Length — in (OAL)3.5039"
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.5"
Thread Diameter — mm (TD)12.7 mm
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)20.0
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
StandardISO 529
Reference Numbers
EDP Number569702
EAN7320760569702
File Type Download
E0311/2 — Line Drawing PDF Download
