EP213/4

EP213/4

SKU DOR5973810
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$188.76 - $188.76
$188.76
$188.76 - $188.76
$188.76
SHIPPING TIMES
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

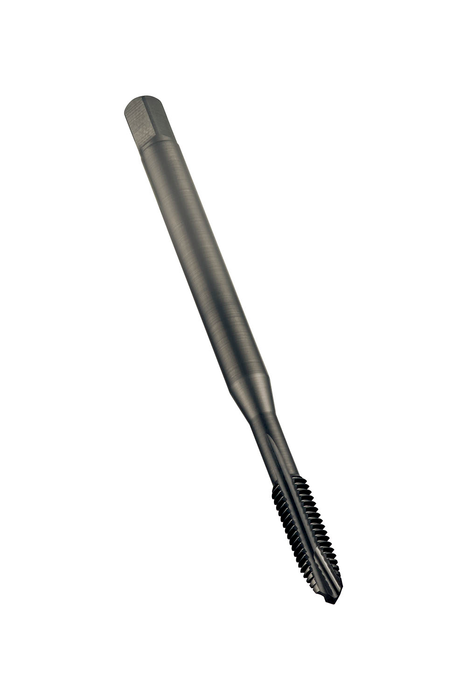

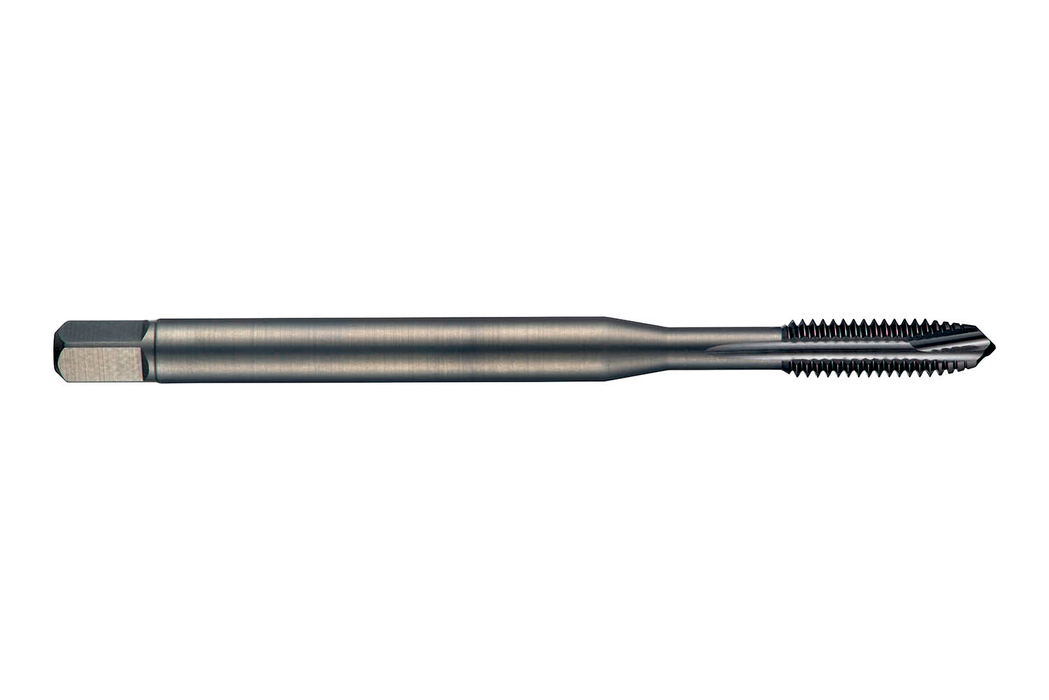

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/4" with 10 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Identification
Ordering Code (ANSI)EP213/4
Product Name (ISO)EP213/4
GradeSteam Tempered
Product Number5973810
EDP Number138335
EAN7320760138335
Package Quantity1
Product FamilyEP21

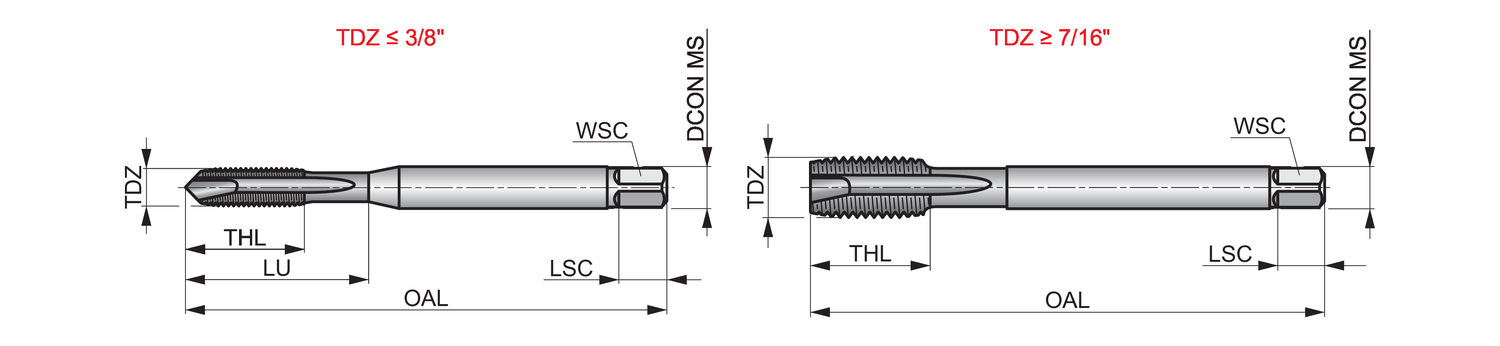

Dimensions
Overall Length — in (OAL)4.9213"
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.5512"
Threading
Thread Diameter Size (TDZ)3/4
Thread Diameter — in (TD)0.75"
Thread Diameter — mm (TD)19.05 mm
Thread Form (THFT)UNC - Unified Coarse
Threads per Inch (TPI)10.0
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Measurement StandardInch
