E008M12

E008M12

SKU DOR5973816
by Dormer Pramet
Primary Use: P - Steel and Cast Steel Possible Use: M - Stainless Steel

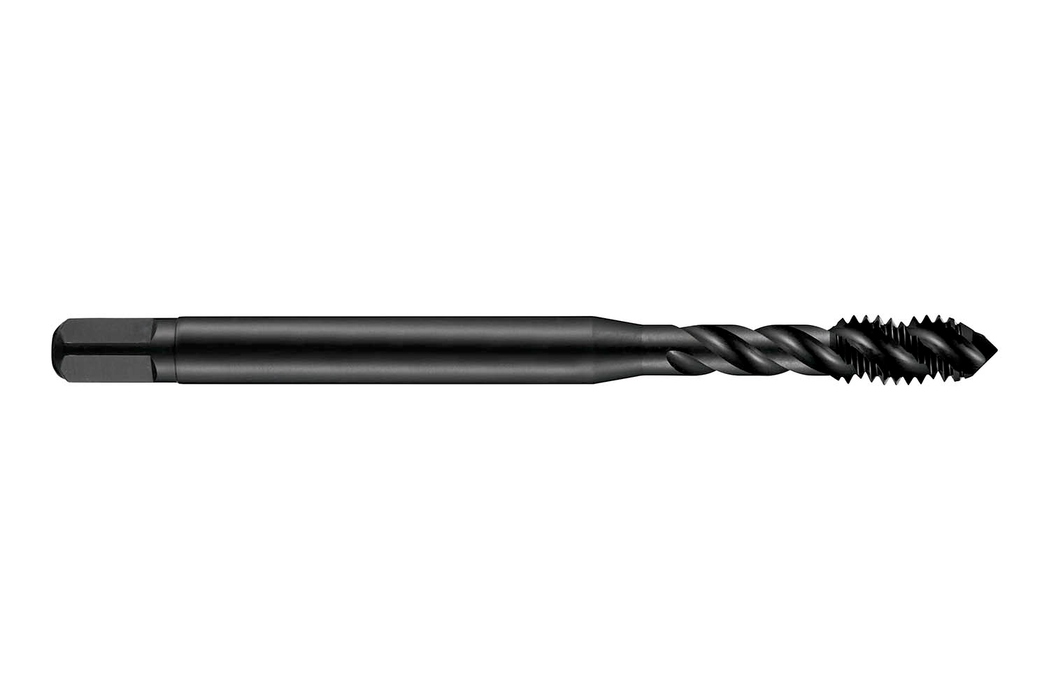

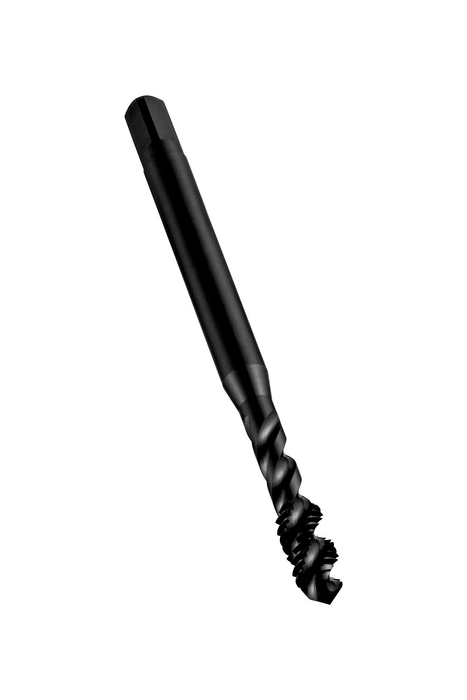

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.3670" shank and 0.2750" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$70.15 - $70.15
$70.15
$70.15 - $70.15
$70.15
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

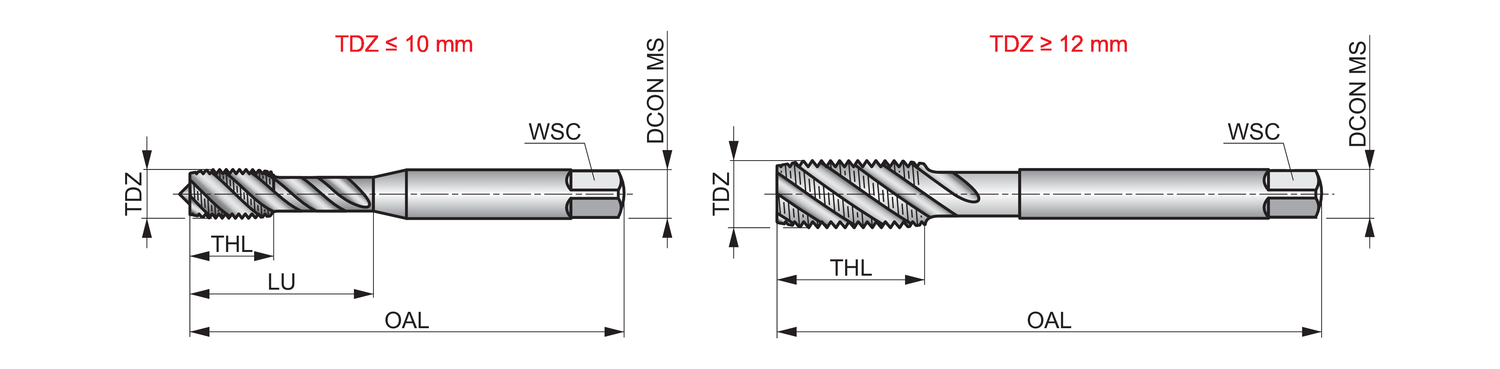

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.375

Connetion Diameter: 0.367

Tool Direction: Right

Diameter Size: 12

Pitch - mm: 1.75

Pitch - in: 0.0689

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 580752

EAN: 7320760580752

MFG Part Number: 5973816
