E008M14

E008M14

by Dormer Pramet
Primary Use: P - Steel and Cast Steel Possible Use: M - Stainless Steel

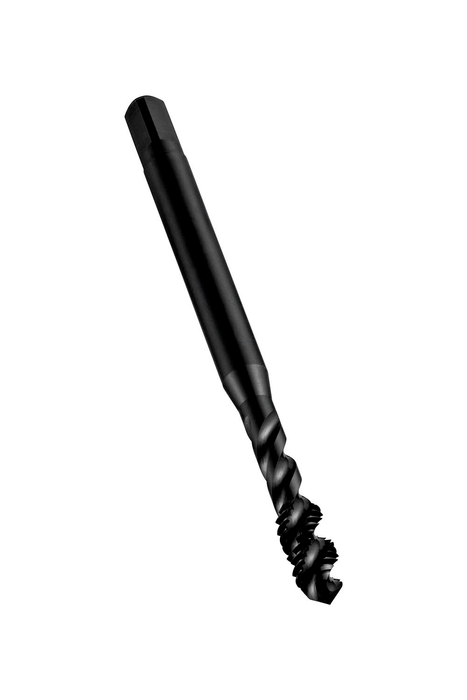

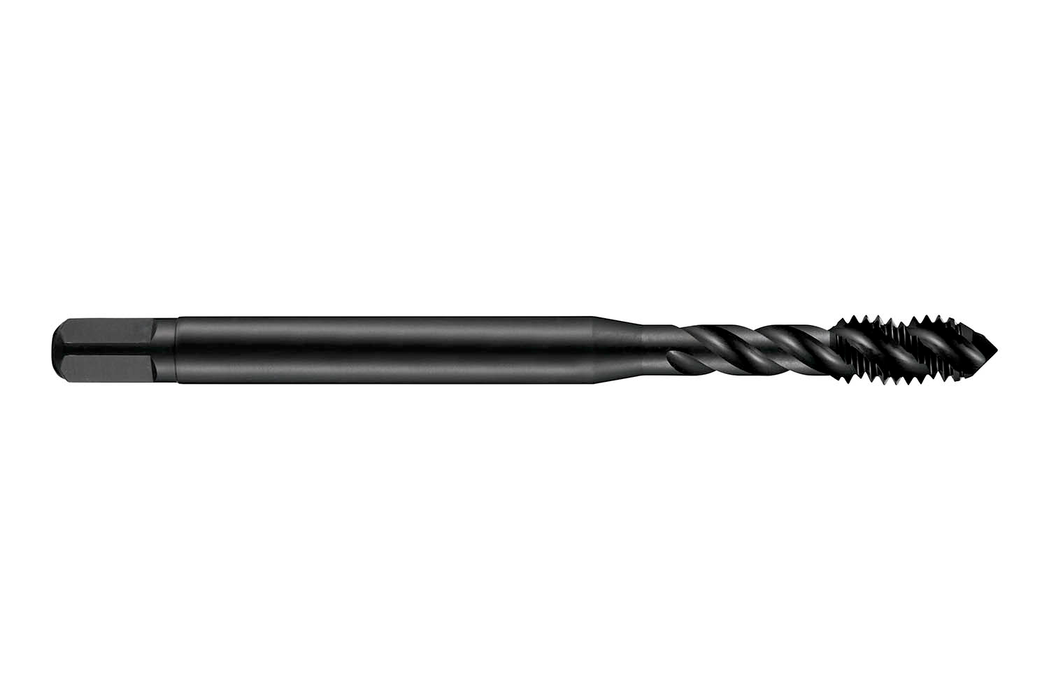

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.4290" shank and 0.3220" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$94.02 - $94.02
$94.02 - $94.02
$94.02
$94.02 - $94.02
$94.02
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

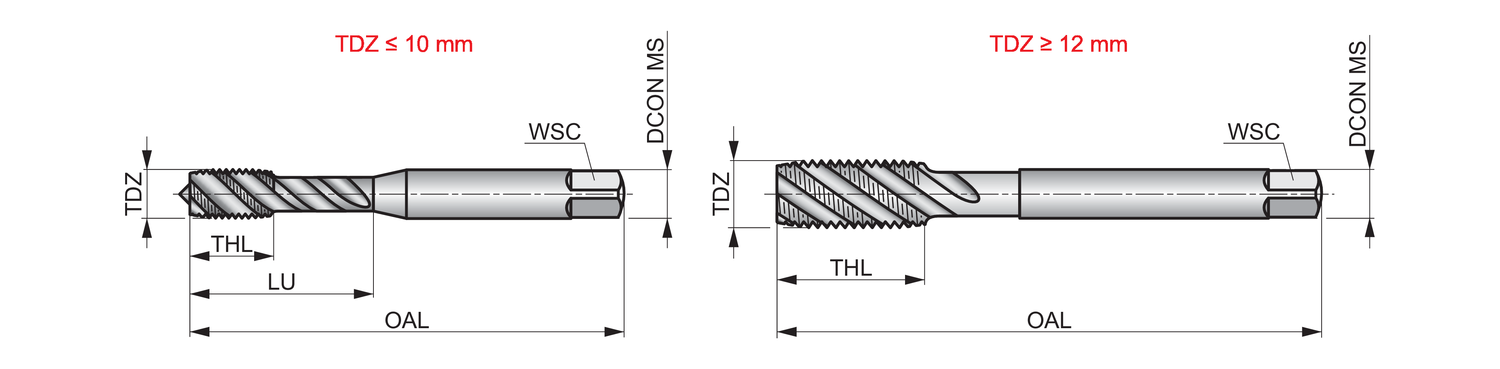

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.5938

Connetion Diameter: 0.429

Tool Direction: Right

Diameter Size: 14

Pitch - mm: 2.0

Pitch - in: 0.0787

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 580769

EAN: 7320760580769

MFG Part Number: 5973820
