EP301/4

EP301/4

SKU DOR5973829
by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

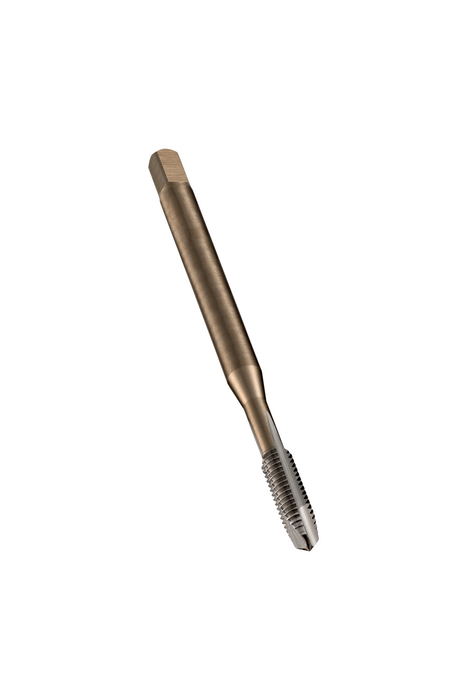

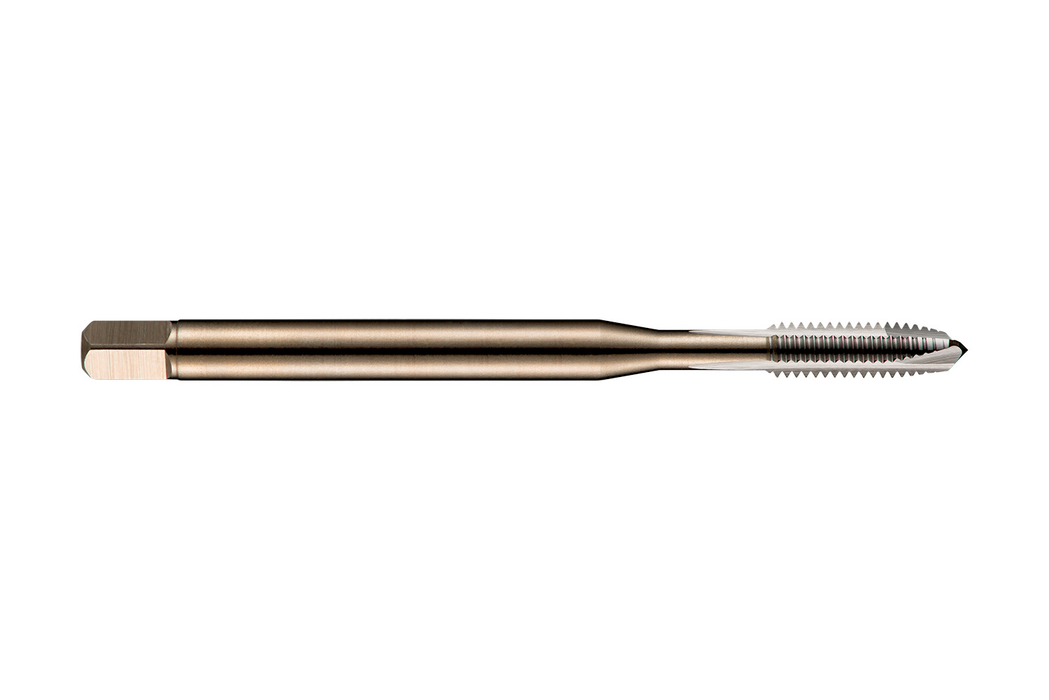

Spiral point tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/4" with 28 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$50.79 - $50.79
$50.79
$50.79 - $50.79
$50.79
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.1496

Connetion Diameter: 0.2756

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - in: 0.25

Thread Diameter - mm: 6.35

TPI: 28.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Usable Length: 1.1811

Grade: Bright

EDP: 138380

EAN: 7320760138380

MFG Part Number: 5973829
