E008M6

E008M6

SKU DOR5973846
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$31.37 - $31.37
$31.37
$31.37 - $31.37
$31.37
SHIPPING TIMES
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

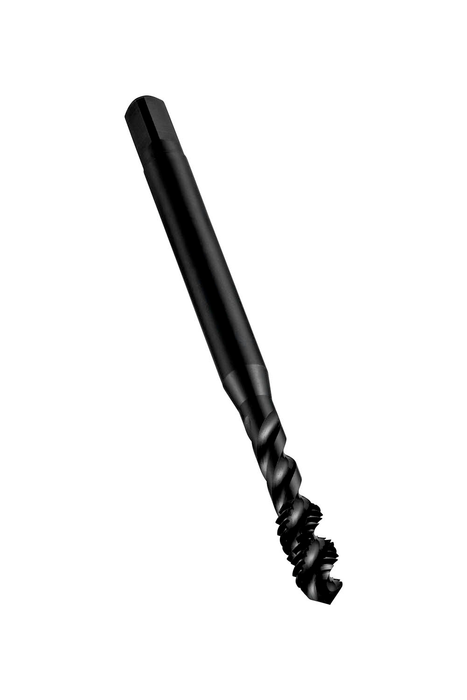

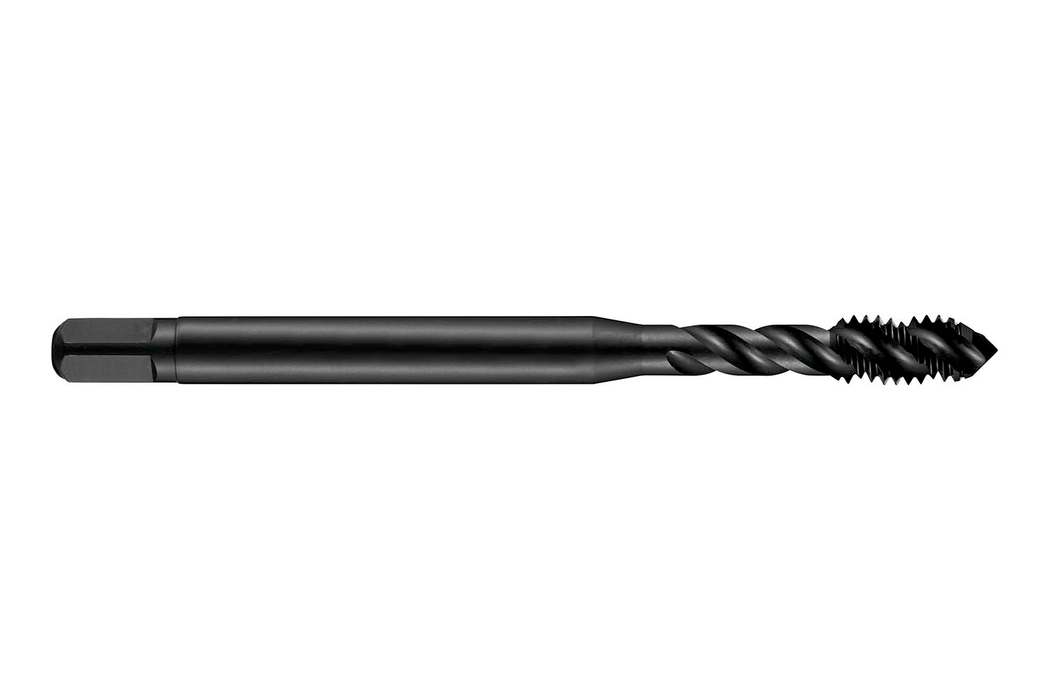

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.2550" shank and 0.1910" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Identification
Ordering Code (ANSI)E008M6
Product Name (ISO)E008M6
GradeSteam Tempered
Product Number5973846
EDP Number580721
EAN7320760580721
Package Quantity1
Product FamilyE008

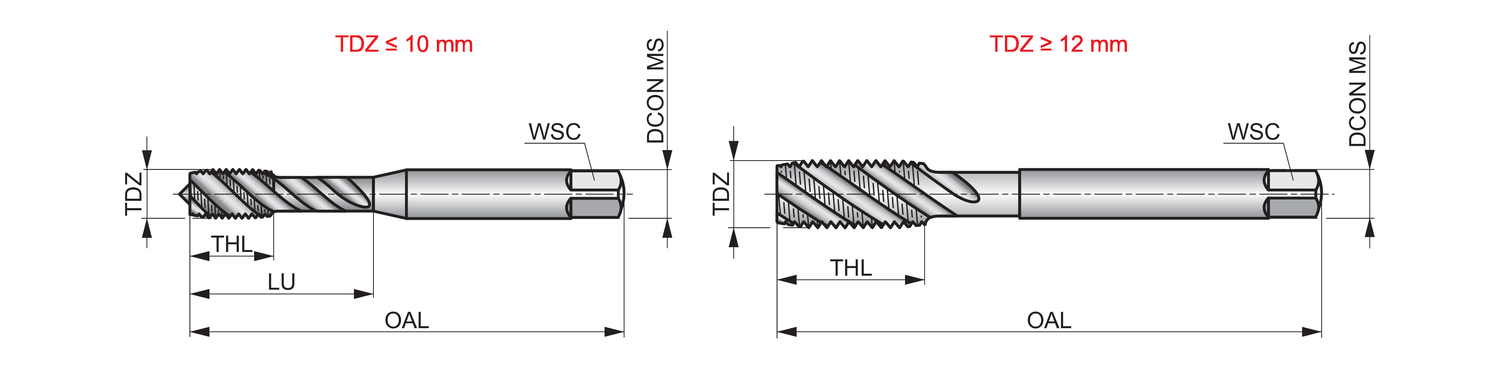

Dimensions
Overall Length — in (OAL)2.5"
Length × Diameter Ratio2.5
Usable Length — in (LU)1.0993"
Connection Dia. — in (DCON)0.255"
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Measurement StandardMetric
