EP213/8

EP213/8

SKU DOR5973858
by Dormer Pramet
Primary Use: P - Steel and Cast Steel Possible Use: M - Stainless Steel K - Cast Iron

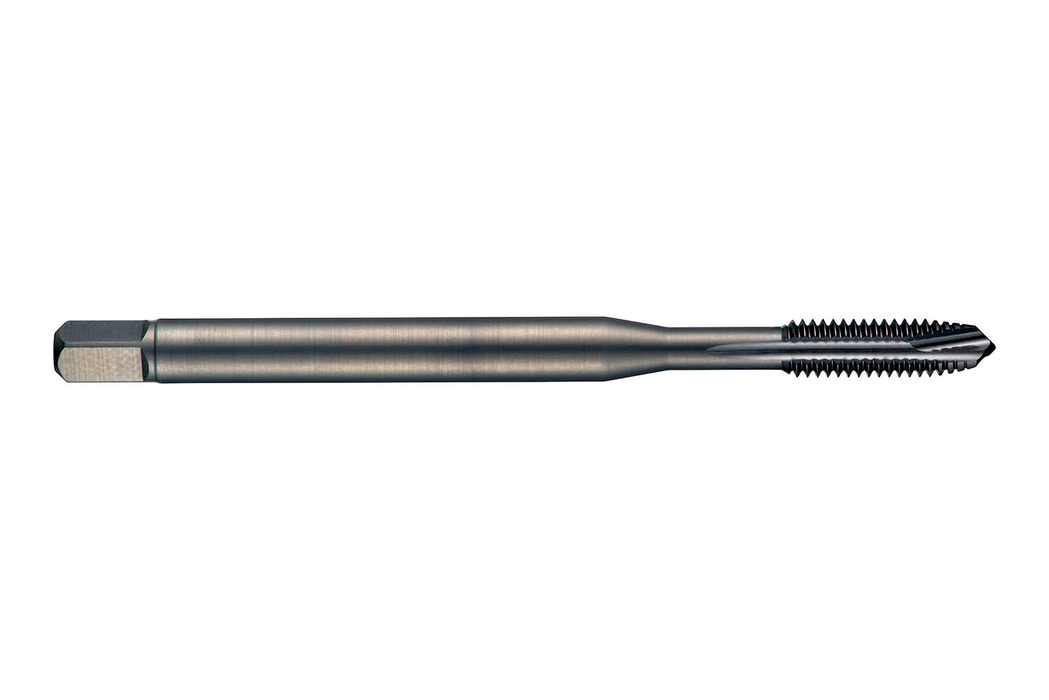

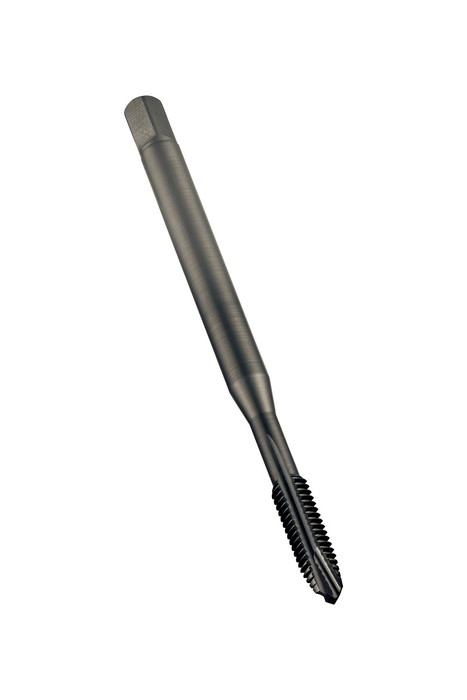

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 3/8" with 16 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-4 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$0
$69.87 - $69.87
$69.87
$69.87 - $69.87
$69.87
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

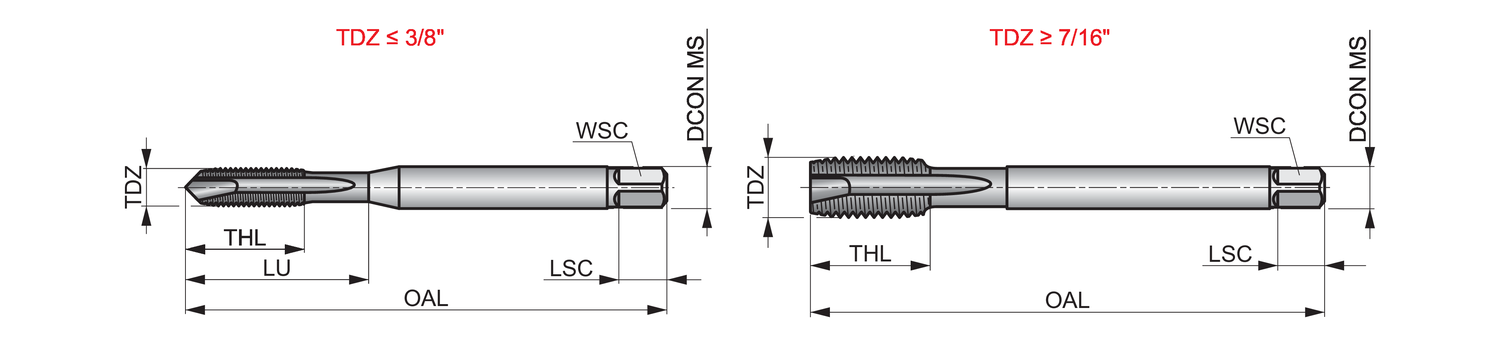

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.937

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.375

Thread Diameter - mm: 9.525

TPI: 16.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 1.5354

Grade: Steam Tempered

EDP: 138298

EAN: 7320760138298

MFG Part Number: 5973858
