EP307/8

EP307/8

by Dormer Pramet
Primary Use: P - Steel and Cast Steel N - Non-Ferrous Metals

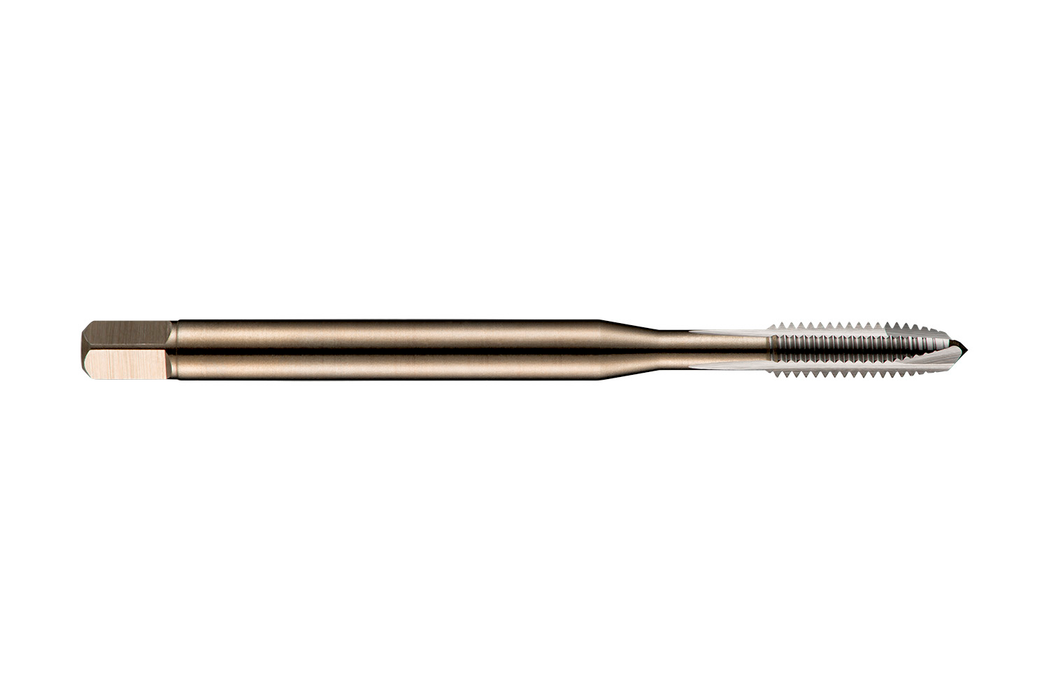

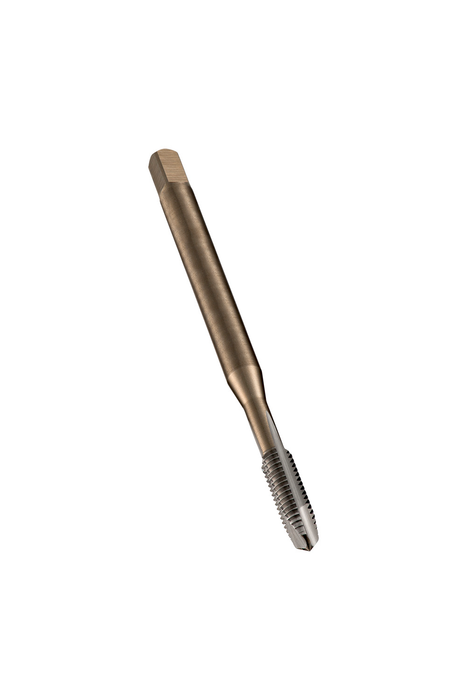

Spiral point tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/8" with 14 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$283.14 - $283.14
$283.14 - $283.14
$283.14
$283.14 - $283.14
$283.14
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 5.5118

Connetion Diameter: 0.7087

Tool Direction: Right

Diameter Size: 7/8

Thread Diameter - in: 0.875

Thread Diameter - mm: 22.225

TPI: 14.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 138458

EAN: 7320760138458

MFG Part Number: 5973866
