F312M14X1.5

F312M14X1.5

SKU DOR5977944
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.20 - $133.20
$133.20
$133.20 - $133.20
$133.20

Sold in packs of: 1

Hexagon die nut, for ISO-Metric Fine thread M14 with 1.50 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.3000" width across flat and 5/8" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)F312M14X1.5
GradeBright
Product Number5977944
Product FamilyF312
Dimensions
Overall Length — in (OAL)0.625"
Overall Length — mm (OAL)15.88 mm
Threading
Thread Diameter Size (TDZ)14
Thread Diameter — mm (TD)14.0 mm
Thread Form (THFT)MF - Metric fine
Thread Pitch — mm (TP)1.5 mm
Tool Information
Direction of ToolRight
StandardBS 1127:1950
Reference Numbers
EDP Number206430
EAN7320760206430
File Type Download

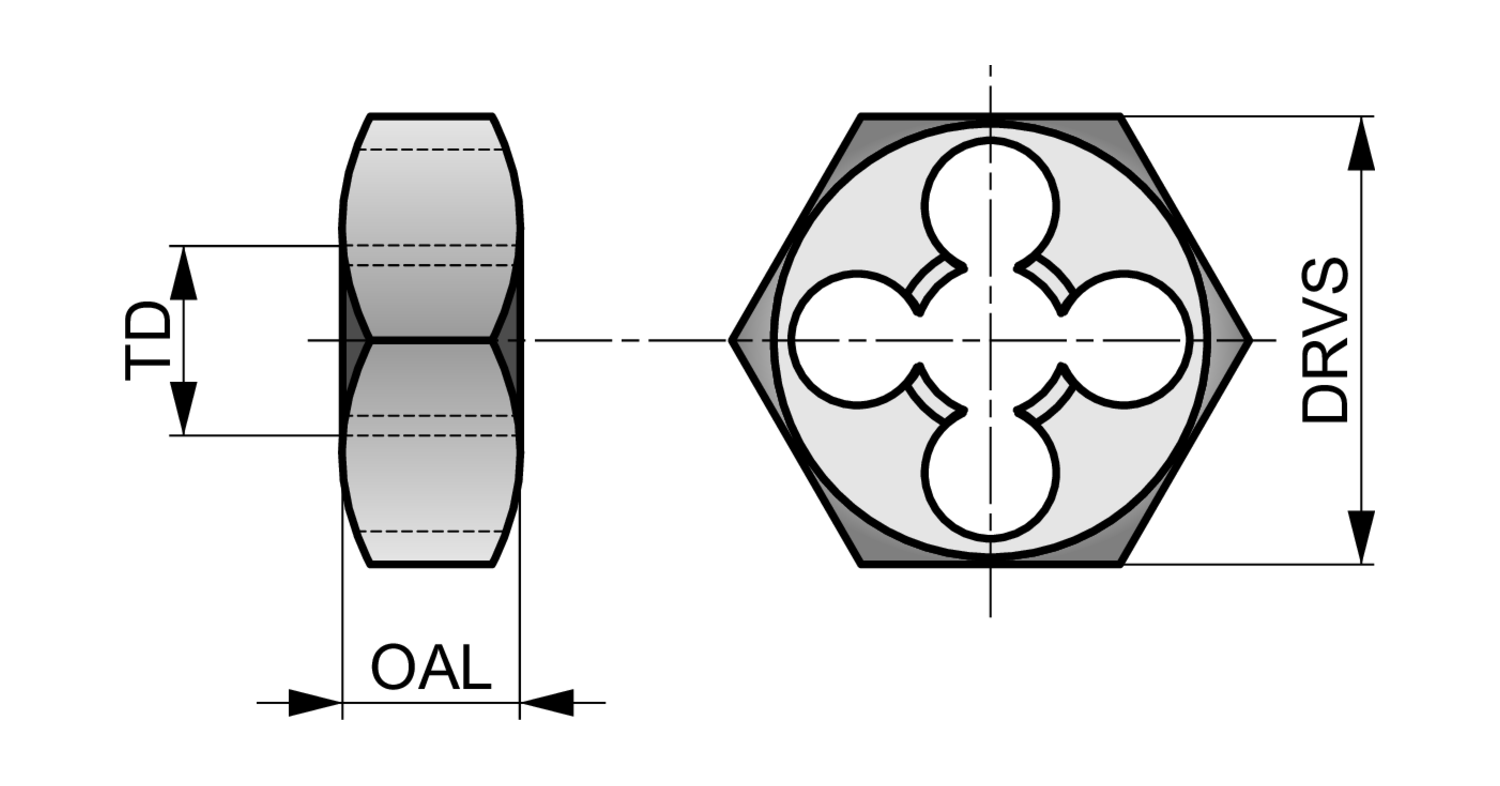

F312M14X1.5 — Line Drawing PDF Download
