E6513/8

E6513/8

by Dormer Pramet
Primary Use: P - Steel and Cast Steel Possible Use: N - Non-Ferrous Metals

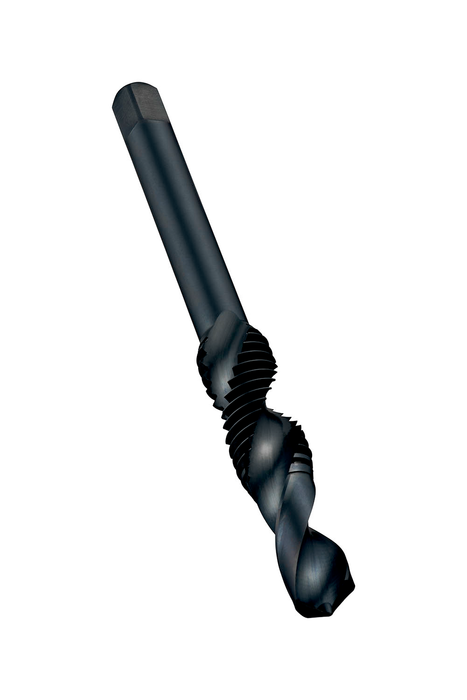

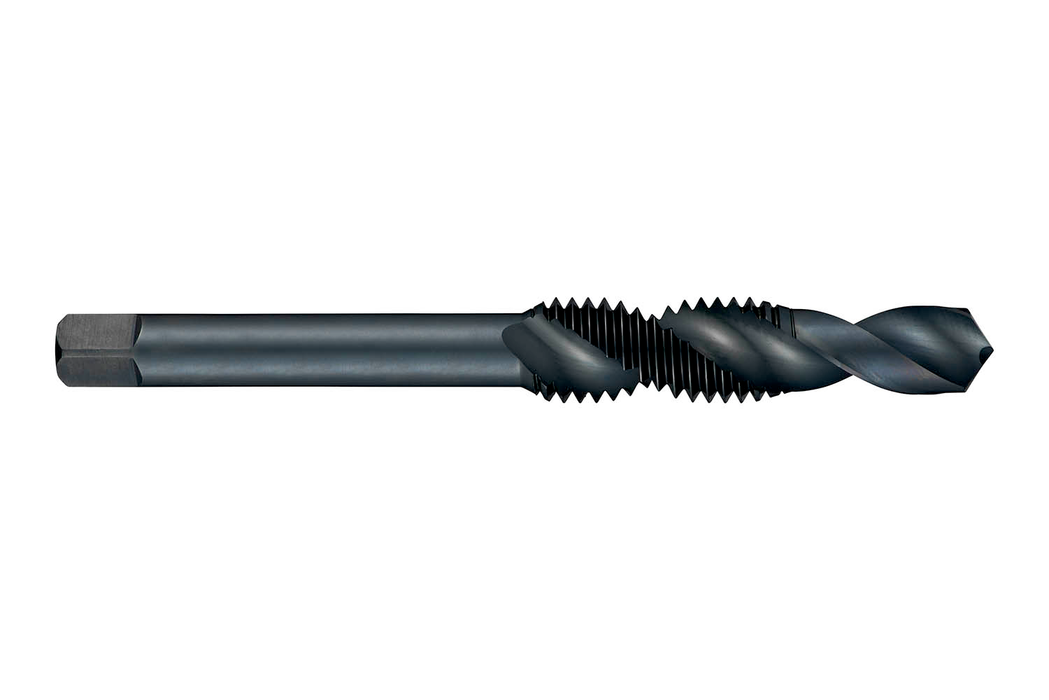

Combination drill-tap with a 30° spiral flute, for Unified National Coarse thread UNC 3/8" with 16 TPI and 2B class of fit, dimensions according to DORMER-DIN standard with 10.0mm shank and 8.0mm square drive, HSS with steam tempered surface finish and 30° helix angle for 1.5xD through hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$48.60 - $48.60
$48.60 - $48.60
$48.60
$48.60 - $48.60
$48.60
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

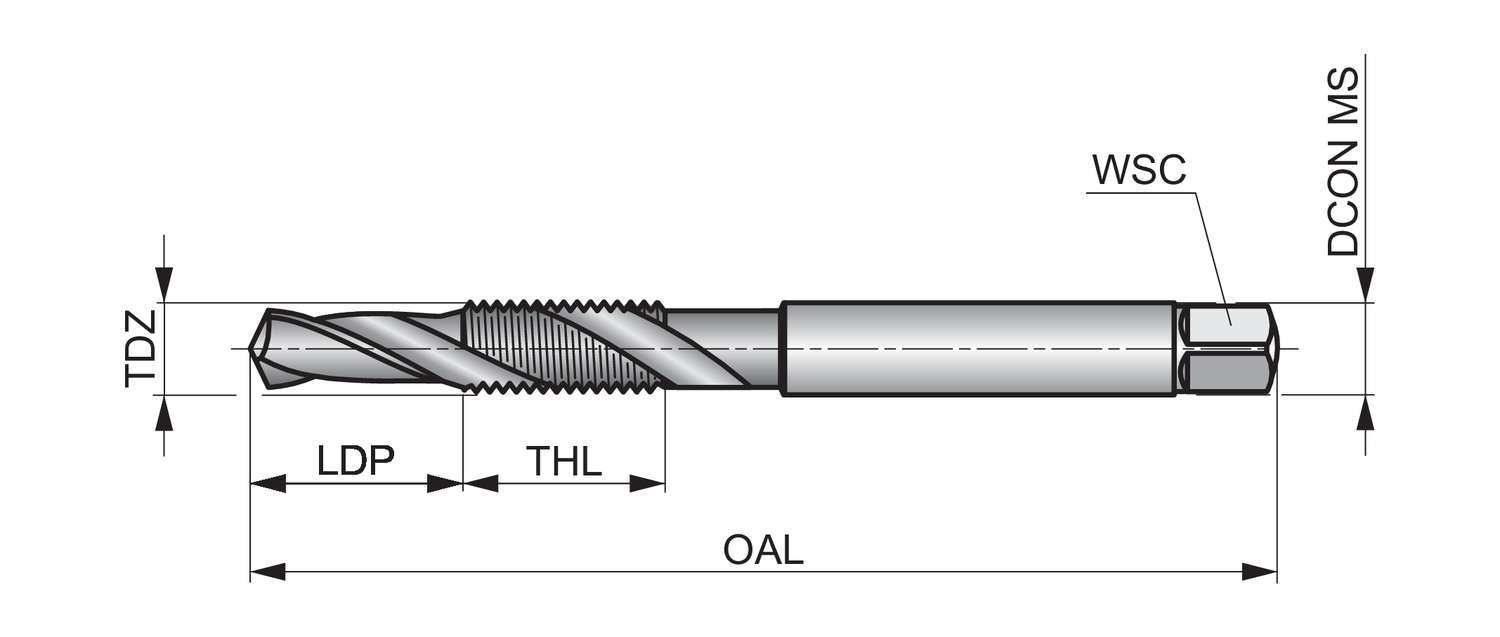

Overall Length (OAL): 4.2126

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.315

Thread Diameter - mm: 8.0

TPI: 16.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 273234

EAN: 7320760273234

MFG Part Number: 5978362
