E9103/4

E9103/4

SKU DOR7350450
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$177.29 - $177.29
$177.29
$177.29 - $177.29
$177.29

Sold in packs of: 1

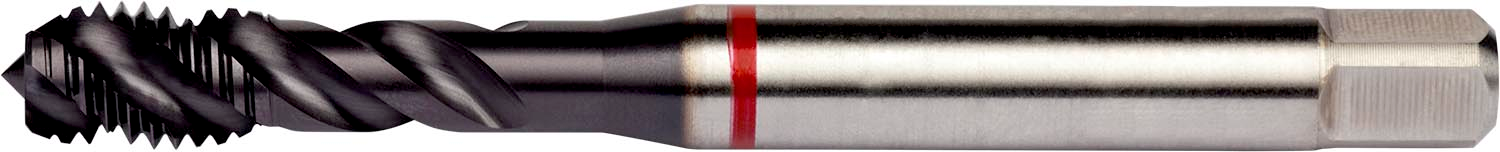

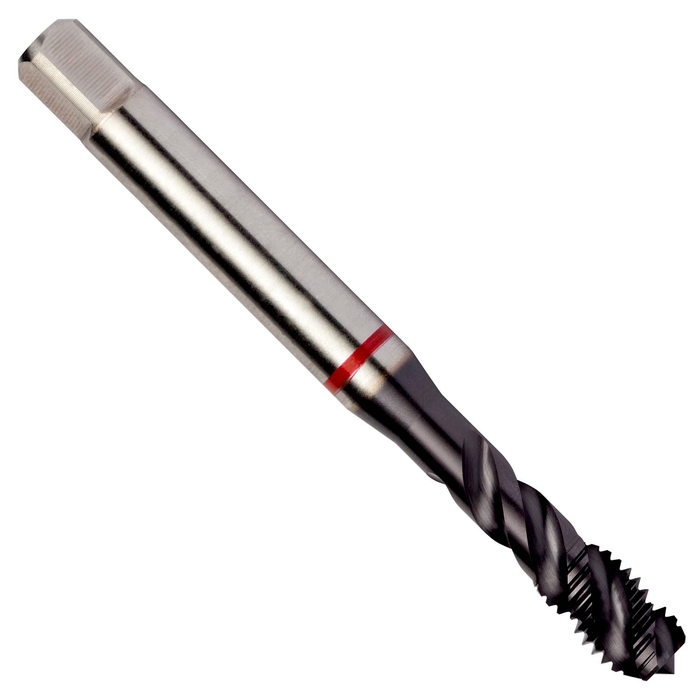

Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/4" with 16 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900" shank and 0.4390" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E9103/4
GradeTiAlN/Top
Product Number7350450
Product FamilyE910

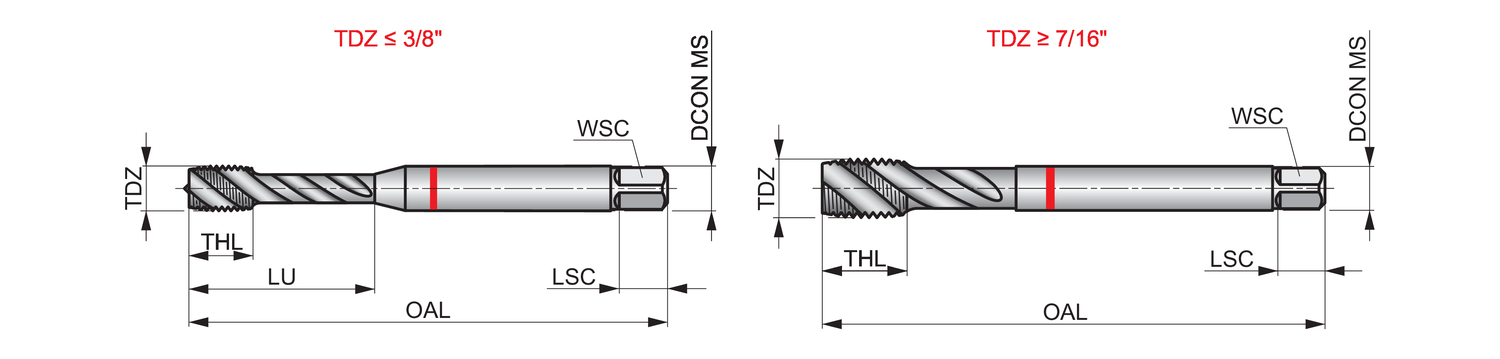

Dimensions
Overall Length — in (OAL)4.331"
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.59"
Threading
Thread Diameter Size (TDZ)3/4
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)16.0
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350450
EAN7320760752944
