E9107/8

E9107/8

SKU DOR7350451
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$248.20 - $248.20
$248.20
$248.20 - $248.20
$248.20

Sold in packs of: 1

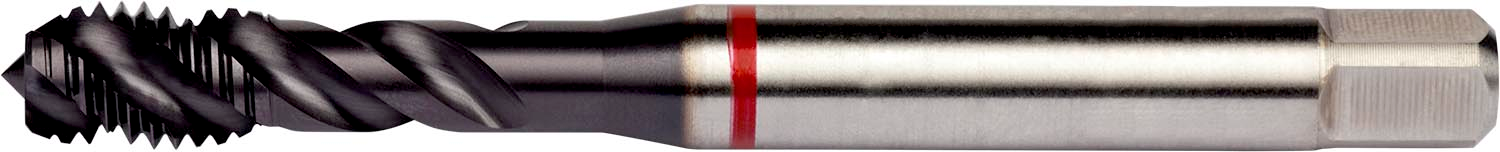

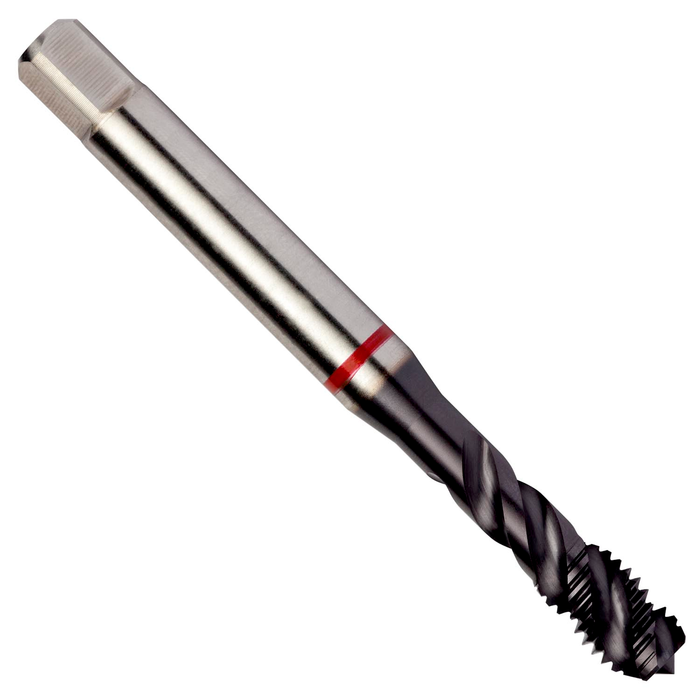

Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/8" with 14 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970" shank and 0.5200" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E9107/8
GradeTiAlN/Top
Product Number7350451
Product FamilyE910

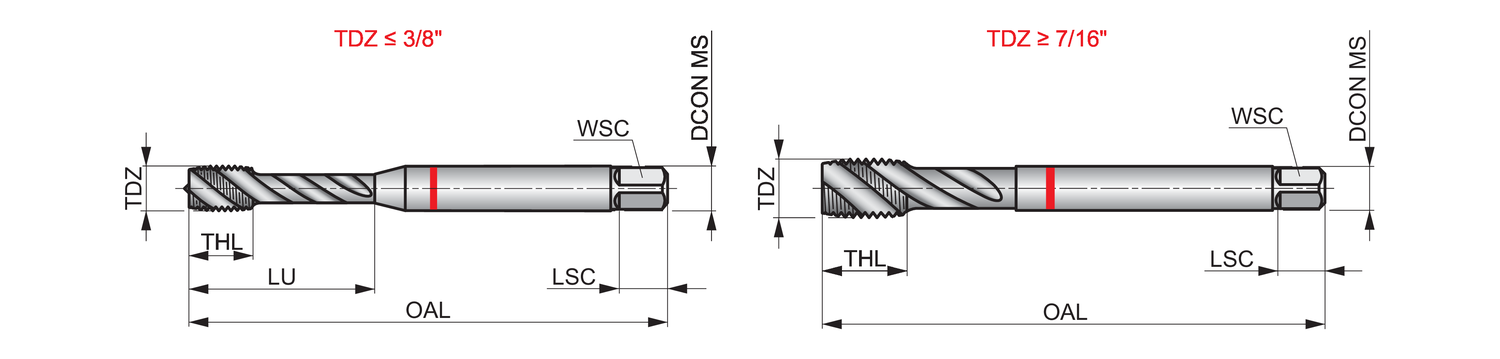

Dimensions
Overall Length — in (OAL)4.921"
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.697"
Threading
Thread Diameter Size (TDZ)7/8
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)14.0
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350451
EAN7320760752951
