E626M4

E626M4

SKU DOR7350454
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.84 - $39.84
$39.84
$39.84 - $39.84
$39.84

Sold in packs of: 1

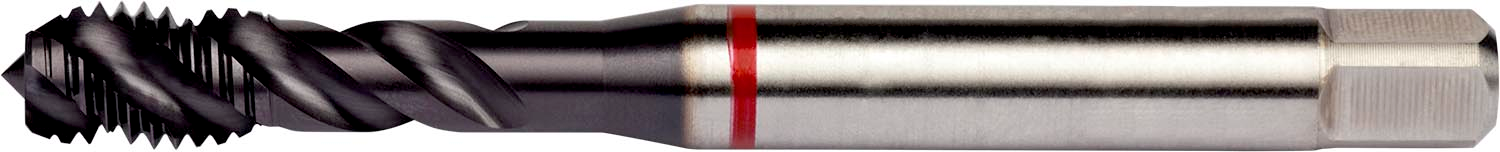

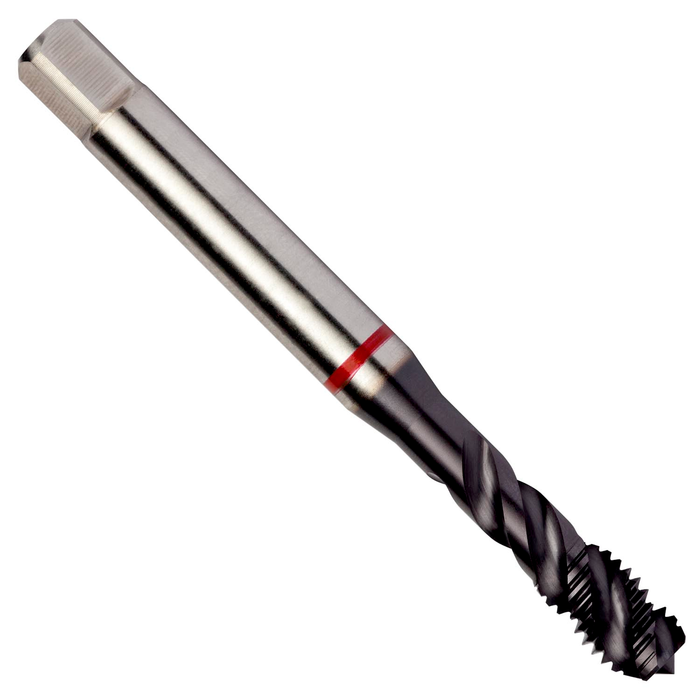

Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680" shank and 0.1290" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E626M4
GradeTiAlN/Top
Product Number7350454
Product FamilyE626

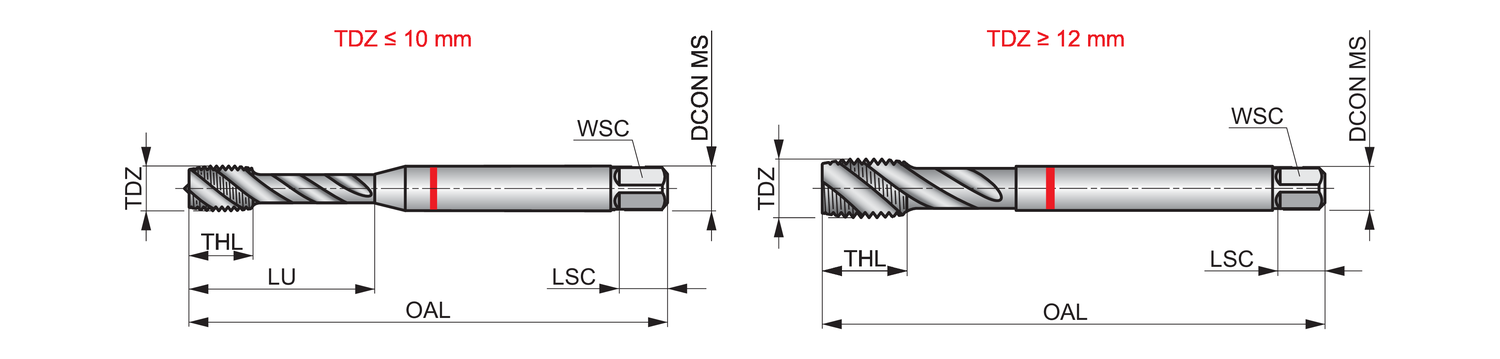

Dimensions
Overall Length — in (OAL)2.4803"
Length × Diameter Ratio2.5
Usable Length — in (LU)0.8268"
Connection Dia. — in (DCON)0.168"
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350454
EAN7320760752982
