E766M8X1.0

E766M8X1.0

SKU DOR7350465
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.14 - $52.14
$52.14
$52.14 - $52.14
$52.14

Sold in packs of: 1

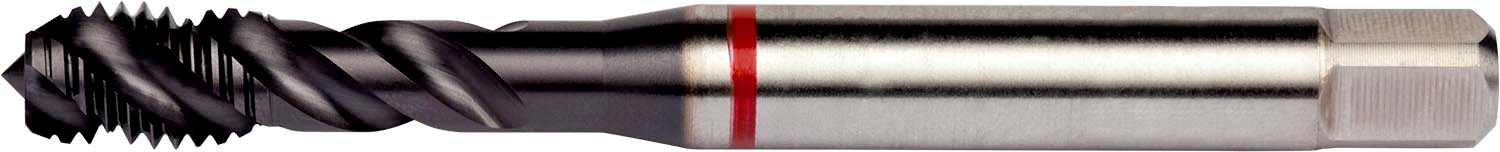

Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M8 with 1.00 mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2360" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E766M8X1.0
GradeTiAlN/Top
Product Number7350465
Product FamilyE766

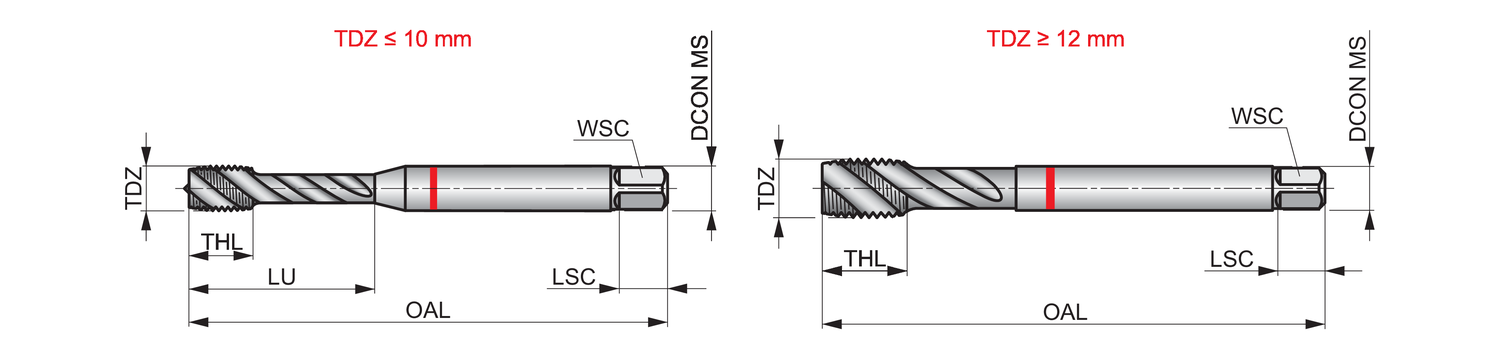

Dimensions
Overall Length — in (OAL)3.5433"
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Connection Dia. — in (DCON)0.318"
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)MF - Metric fine
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350465
EAN7320760753095
