E766M12X1.25

E766M12X1.25

SKU DOR7350467
by Dormer Pramet
Primary Use: Possible Use:

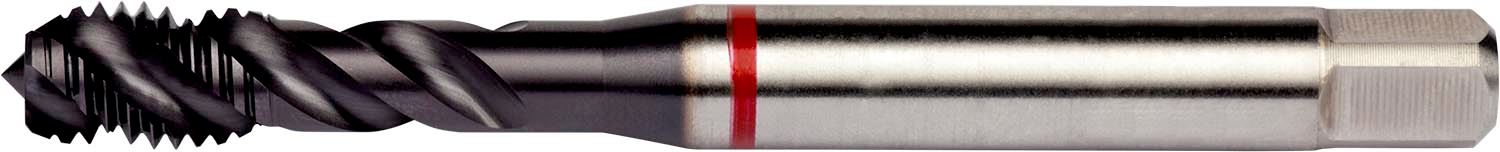

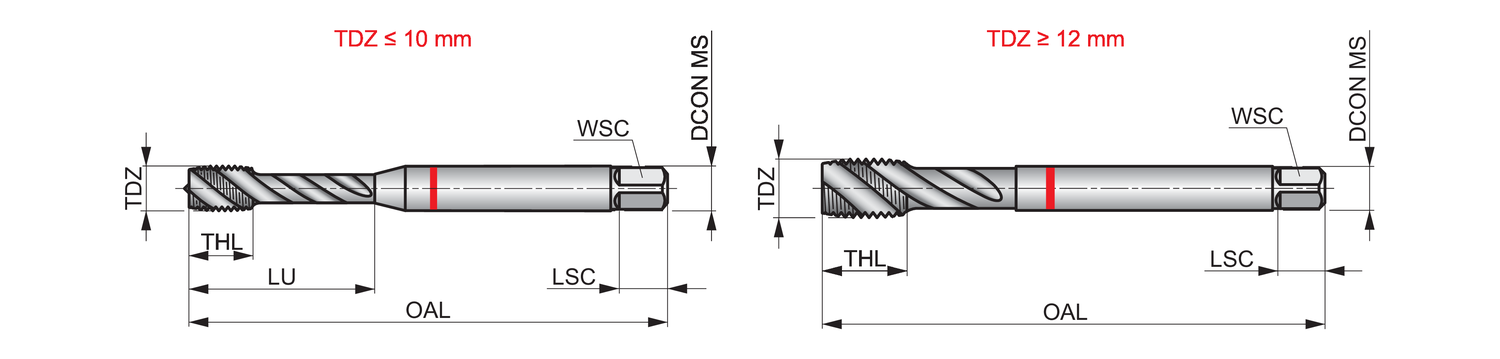

Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.25 mm pitch and D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$85.51 - $85.51
$85.51
$85.51 - $85.51
$85.51
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.937

Connetion Diameter: 0.367

Tool Direction: Right

Diameter Size: 12

Pitch - mm: 1.25

Pitch - in: 0.0492

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: TiAlN/Top

EDP: 7350467

EAN: 7320760753118

MFG Part Number: 7350467
