E8094-40

E8094-40

SKU DOR7350469
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.97 - $25.97
$25.97
$25.97 - $25.97
$25.97

Sold in packs of: 1

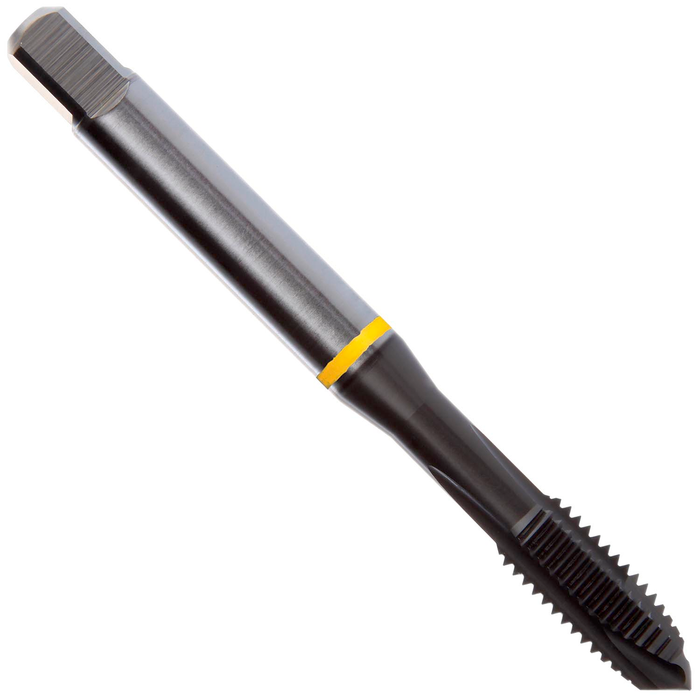

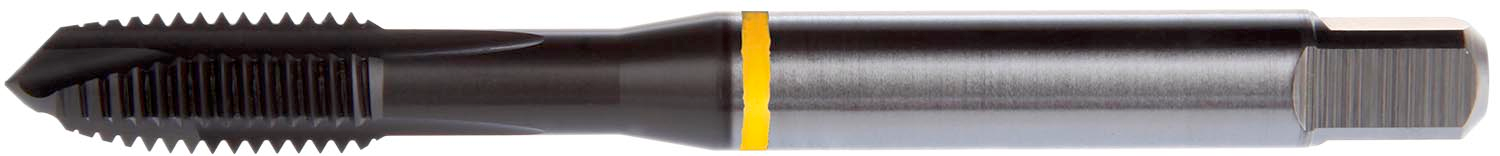

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 4 with 40 TPI and 2B class of fit with H2 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1410" shank and 0.1080" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8094-40
GradeTiAlN/Top
Product Number7350469
Product FamilyE809

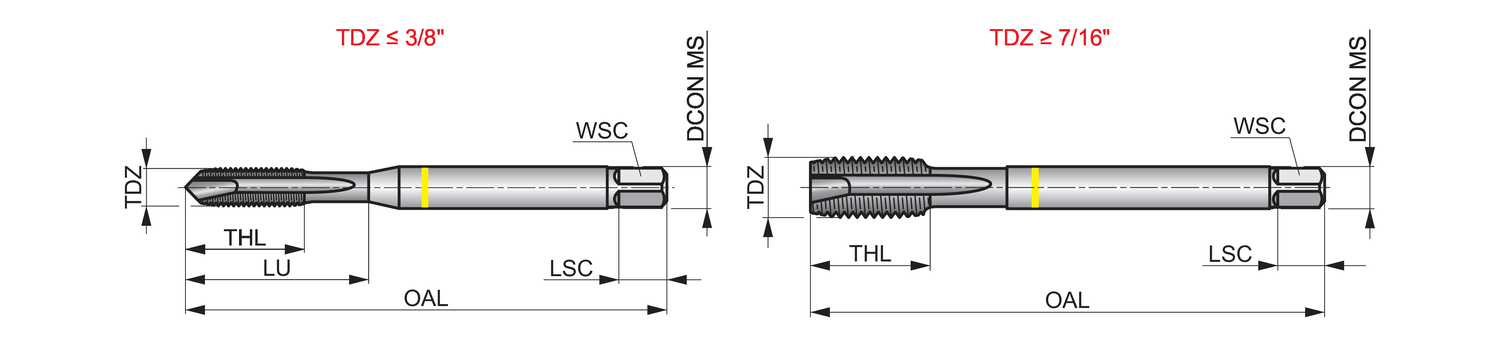

Dimensions
Overall Length — in (OAL)2.205"
Length × Diameter Ratio2.5
Usable Length — in (LU)0.709"
Connection Dia. — in (DCON)0.141"
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)UNC - Unified Coarse
Threads per Inch (TPI)40.0
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350469
EAN7320760753132
