E8098-32

E8098-32

SKU DOR7350471
by Dormer Pramet
Primary Use:

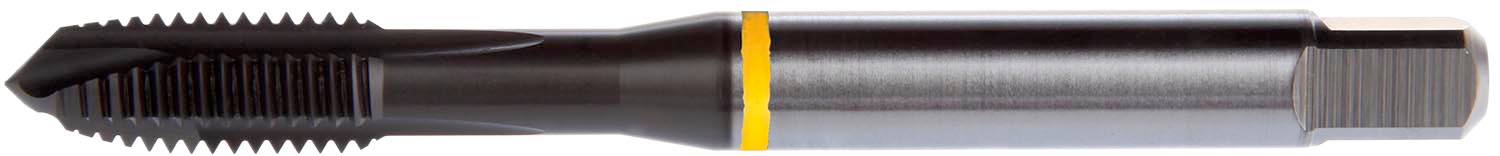

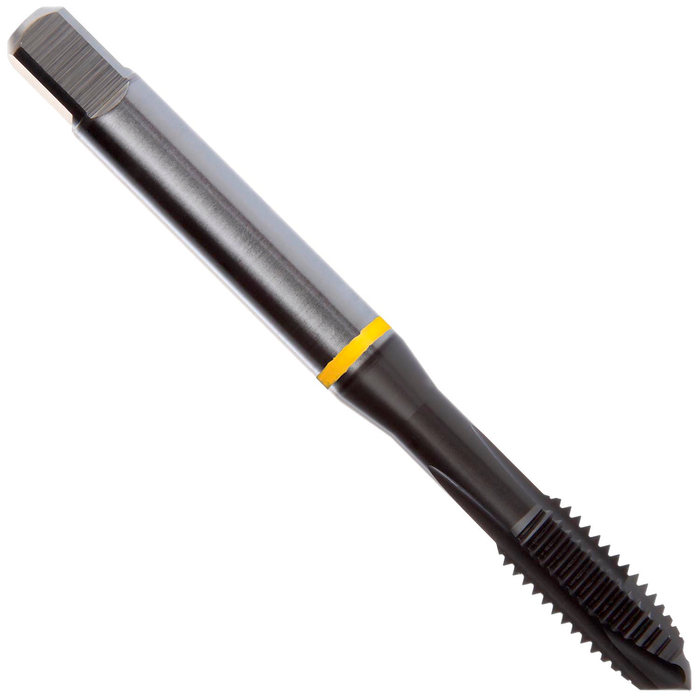

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 8 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680" shank and 0.1290" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$19.94 - $19.94
$19.94
$19.94 - $19.94
$19.94
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.48

Connetion Diameter: 0.168

Tool Direction: Right

Diameter Size: 8

TPI: 32.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 0.827

Grade: TiAlN/Top

EDP: 7350471

EAN: 7320760753156

MFG Part Number: 7350471
