E8095/8

Name: E8095/8
Brand: Dormer Pramet
SKU: DOR7350478
Price: 88.13 CAD
Availability: InStock

SKU DOR7350478

by Dormer Pramet

Primary Use:

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$88.13 - $88.13

$88.13

$88.13 - $88.13

$88.13

Sold in packs of: 1

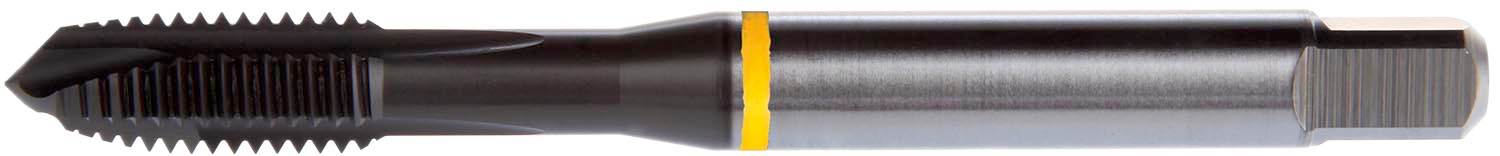

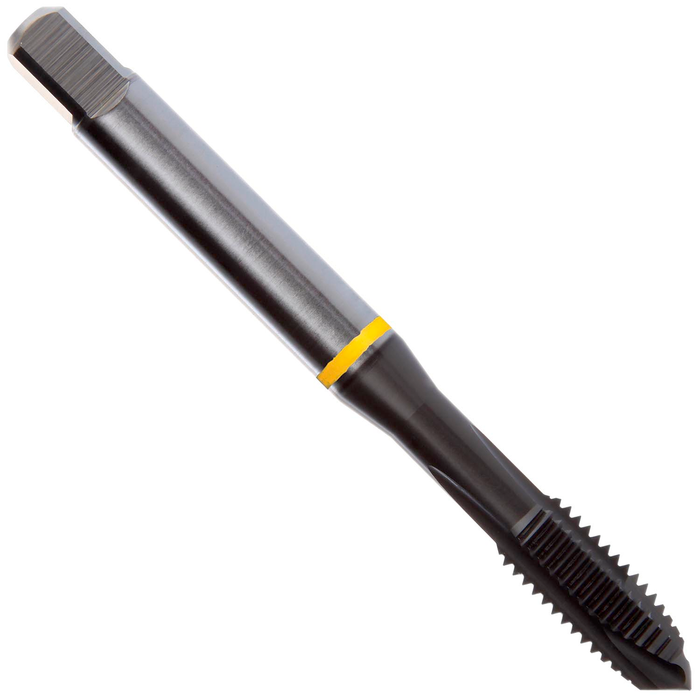

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/8" with 11 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800" shank and 0.3580" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	E8095/8
Grade	TiAlN/Top
Product Number	7350478
Product Family	E809

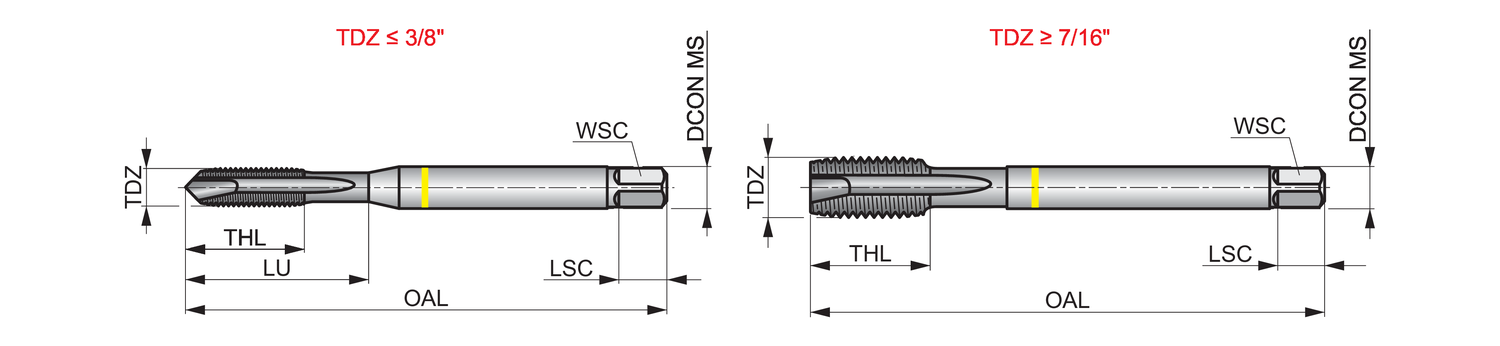

Dimensions
Overall Length — in (OAL)	4.331"
Length × Diameter Ratio	2.5
Connection Dia. — in (DCON)	0.48"
Threading
Thread Diameter Size (TDZ)	5/8
Thread Form (THFT)	UNC - Unified Coarse
Threads per Inch (TPI)	11.0
Tool Information
Shank	Cylindrical shank with Square
Direction of Tool	Right
Reference Numbers
EDP Number	7350478
EAN	7320760753224
