E9093/4

E9093/4

SKU DOR7350489
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$139.23 - $139.23
$139.23
$139.23 - $139.23
$139.23

Sold in packs of: 1

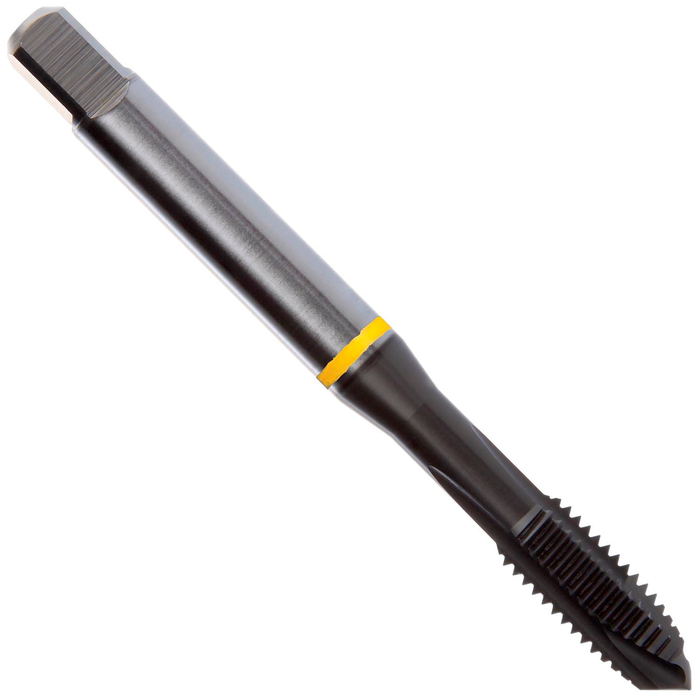

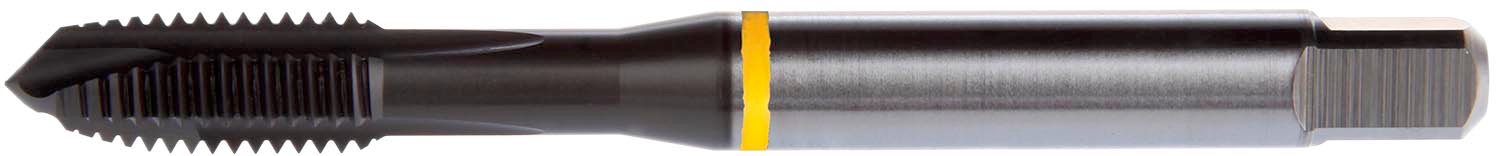

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 3/4" with 16 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5900" shank and 0.4390" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E9093/4
GradeTiAlN/Top
Product Number7350489
Product FamilyE909

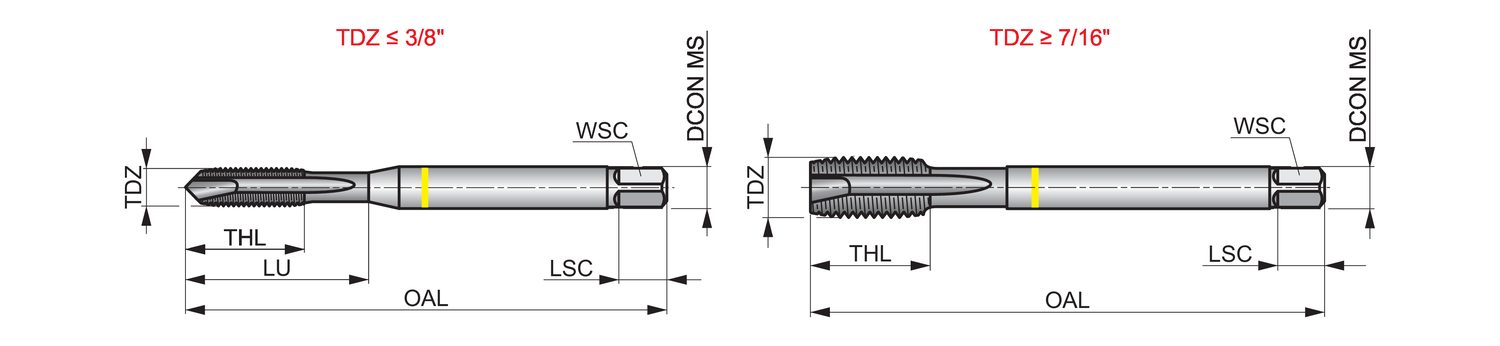

Dimensions
Overall Length — in (OAL)4.331"
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.59"
Threading
Thread Diameter Size (TDZ)3/4
Thread Form (THFT)UNF - Unified Fine
Threads per Inch (TPI)16.0
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350489
EAN7320760753330
