E625M4

E625M4

SKU DOR7350492
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.84 - $24.84
$24.84
$24.84 - $24.84
$24.84

Sold in packs of: 1

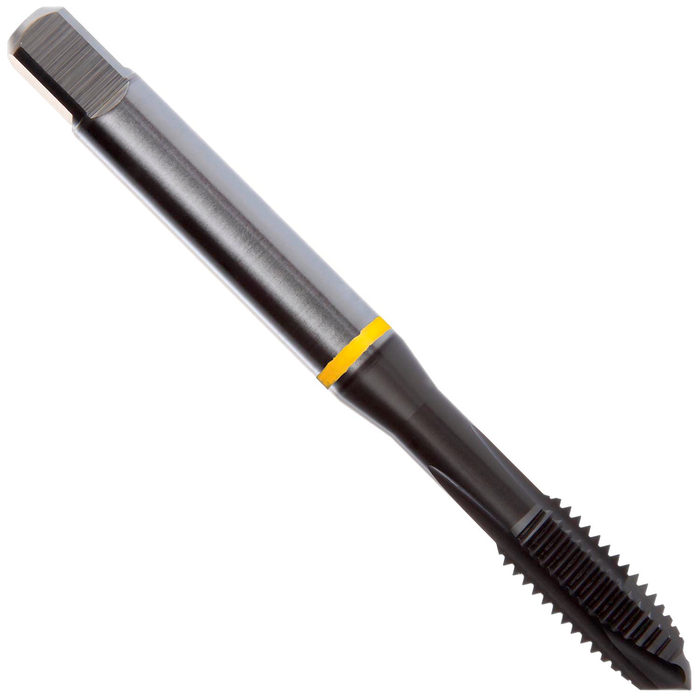

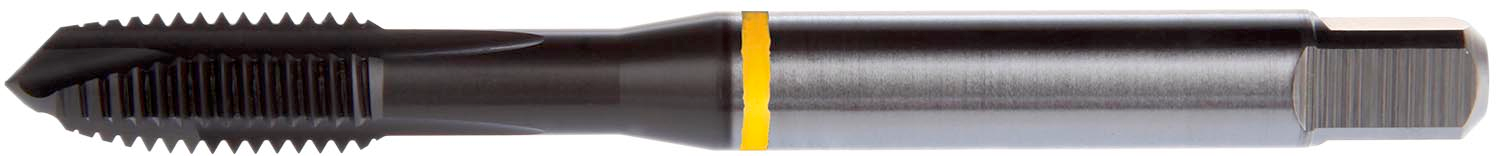

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680" shank and 0.1290" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E625M4
GradeTiAlN/Top
Product Number7350492
Product FamilyE625

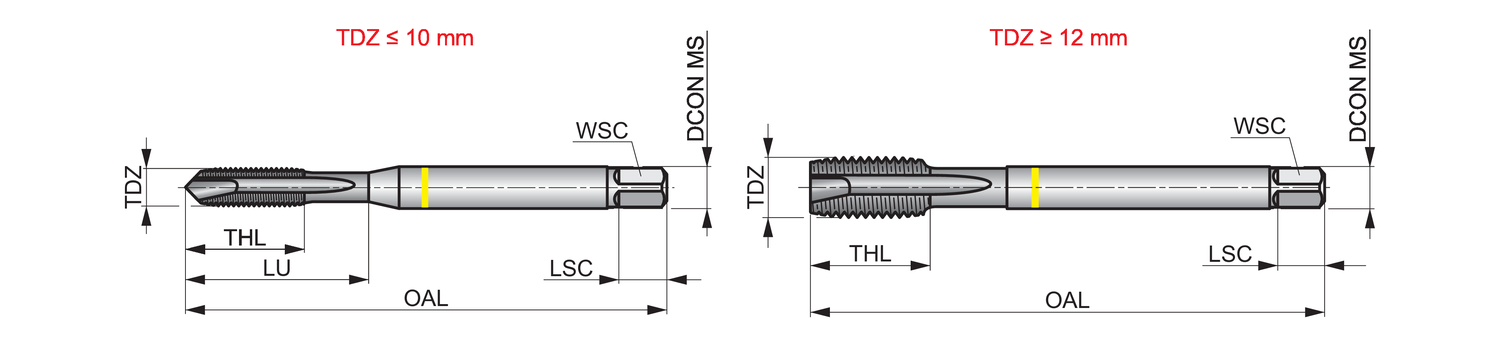

Dimensions
Overall Length — in (OAL)2.4803"
Length × Diameter Ratio2.5
Usable Length — in (LU)0.8268"
Connection Dia. — in (DCON)0.168"
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Metric coarse
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350492
EAN7320760753361
