E625M5

E625M5

SKU DOR7350493
by Dormer Pramet
Primary Use:

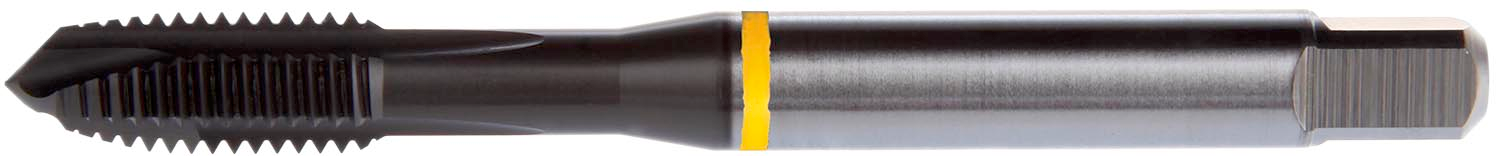

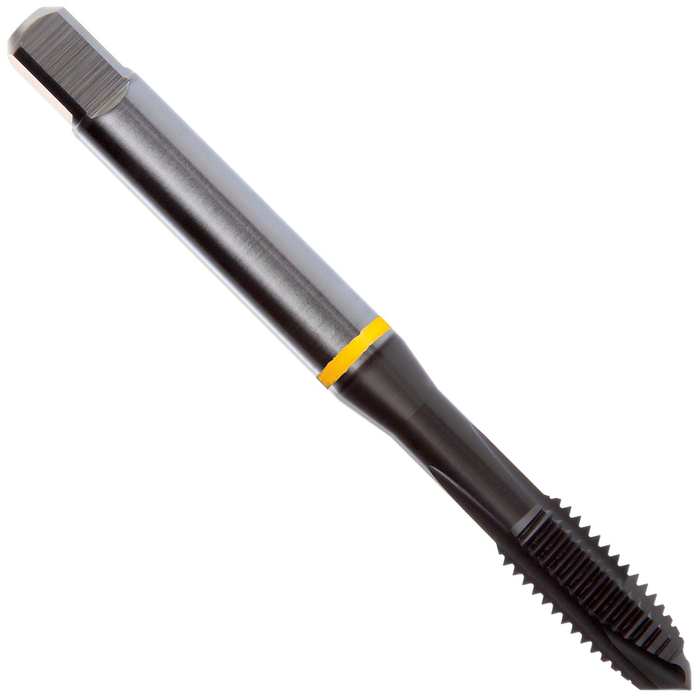

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940" shank and 0.1500" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$22.29 - $22.29
$22.29
$22.29 - $22.29
$22.29
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.7559

Connetion Diameter: 0.194

Tool Direction: Right

Diameter Size: 5

Pitch - mm: 0.8

Pitch - in: 0.0315

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.9843

Grade: TiAlN/Top

EDP: 7350493

EAN: 7320760753378

MFG Part Number: 7350493
