E765M12X1.5

E765M12X1.5

SKU DOR7350506
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.93 - $58.93
$58.93
$58.93 - $58.93
$58.93

Sold in packs of: 1

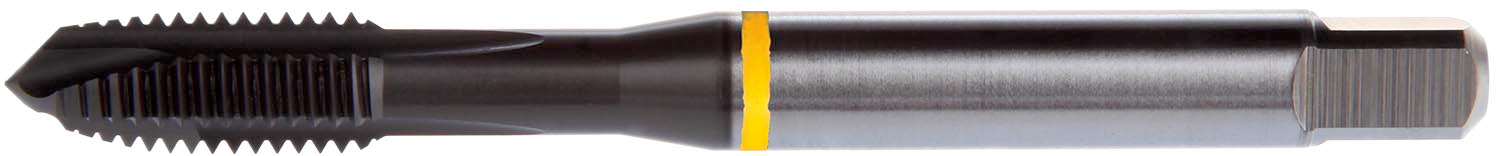

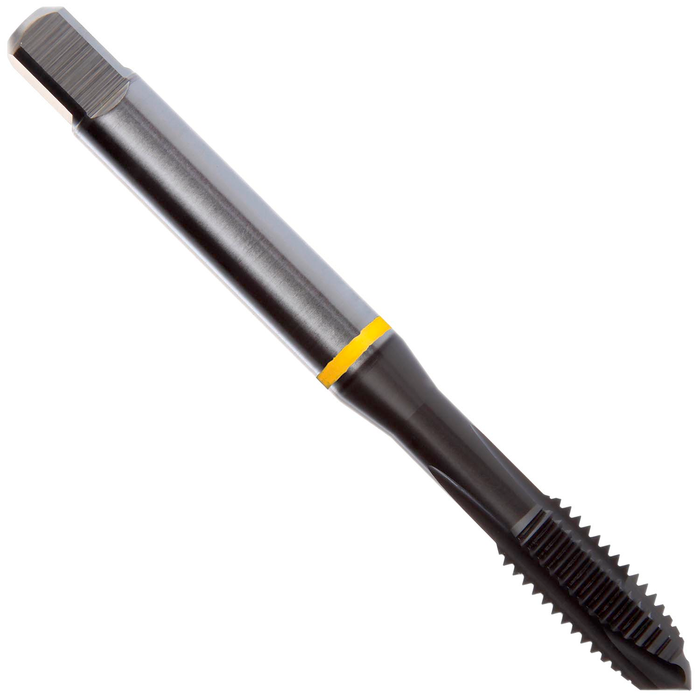

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M12 with 1.50 mm pitch and 6H class of fit with D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E765M12X1.5
GradeTiAlN/Top
Product Number7350506
Product FamilyE765

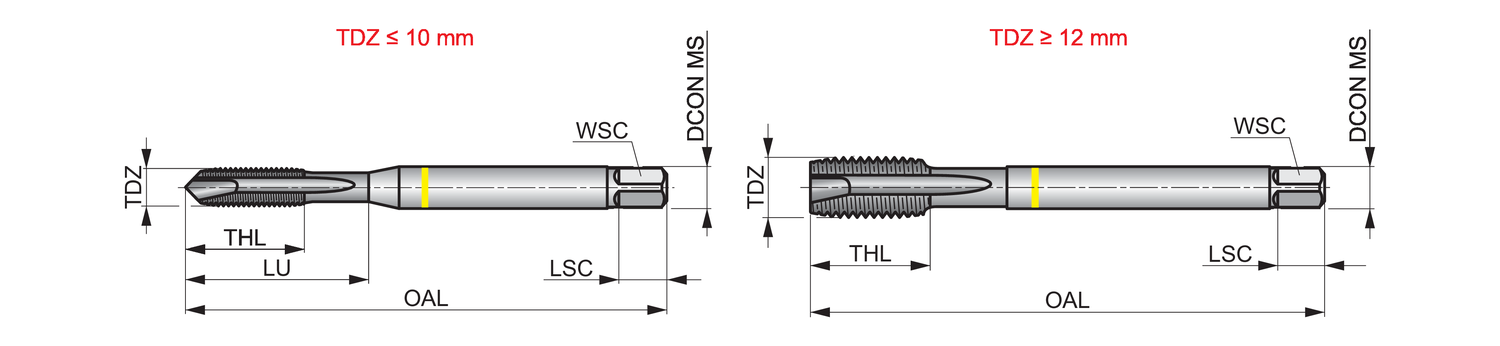

Dimensions
Overall Length — in (OAL)3.937"
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.367"
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)MF - Metric fine
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350506
EAN7320760753507
