E8085/8

E8085/8

SKU DOR7350519
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$118.89 - $118.89
$118.89
$118.89 - $118.89
$118.89

Sold in packs of: 1

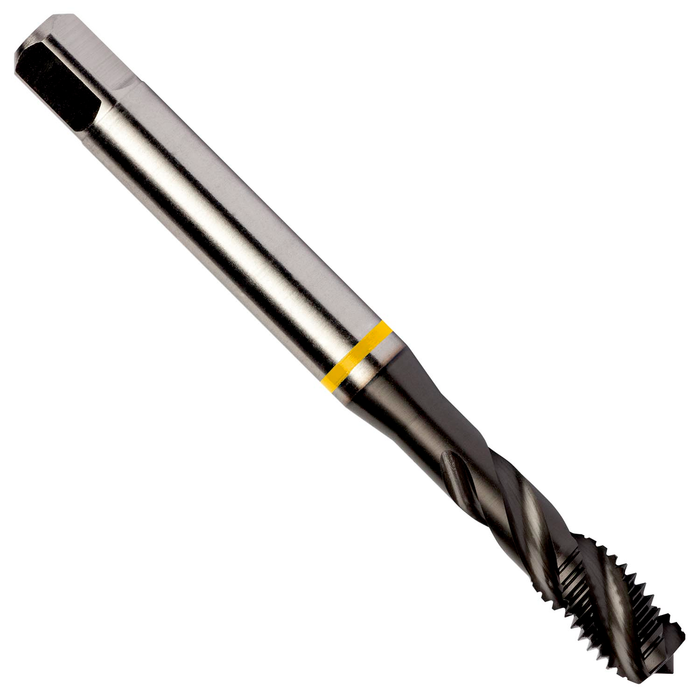

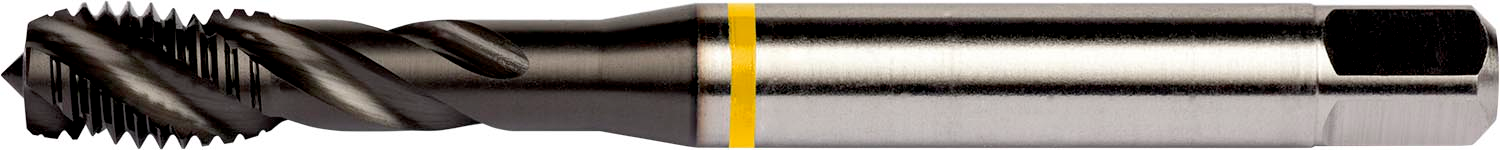

Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 5/8" with 11 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800" shank and 0.3580" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E8085/8
GradeTiAlN/Top
Product Number7350519
Product FamilyE808

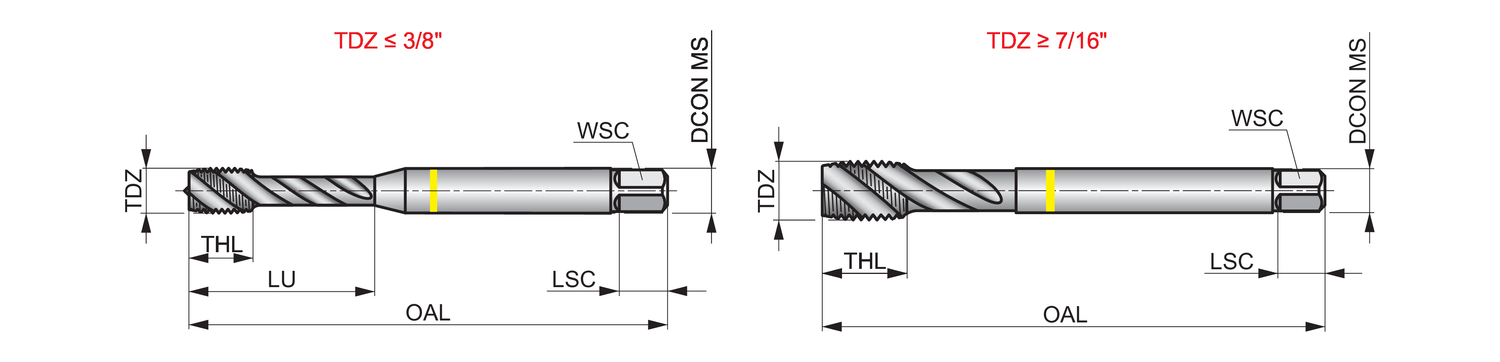

Dimensions
Overall Length — in (OAL)4.331"
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.48"
Threading
Thread Diameter Size (TDZ)5/8
Thread Form (THFT)UNC - Unified Coarse
Threads per Inch (TPI)11.0
Tool Information
ShankCylindrical shank with Square
Direction of ToolRight
Reference Numbers
EDP Number7350519
EAN7320760753637
