TN 22NN600TR:T8030

TN 22NN600TR:T8030

SKU DOR6755389
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.49 - $53.49
$53.49
$53.49 - $53.49
$53.49

Sold in packs of: 5

Single-sided threading insert, triangular with an inscribed circle diameter of .500", for right and left hand cutting of Trapezoidal TR internal threads with 6" pitch, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron in combination with a SI(RL)-S thread turning bar

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 22NN600TR:T8030
GradeT8030
Chipbreaker (CBMD)No chipbreaker
Product Number6755389
Product FamilyTN TR-S INT

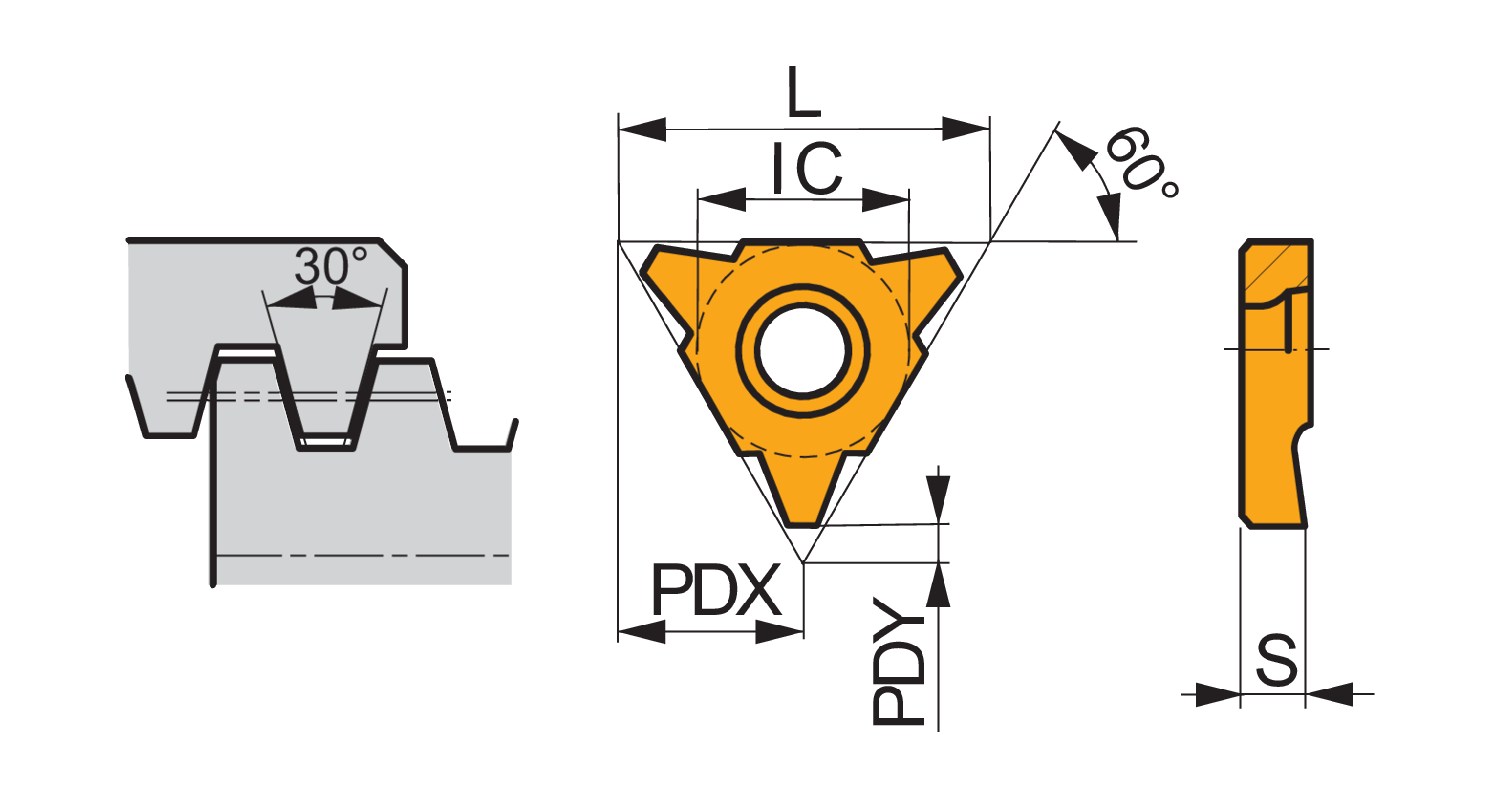

Insert Geometry
Insert DesignTN TR-S INT
Insert Shape Code (SC)T - triangular 60° included angle
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.181"
Insert Thickness — mm (S)4.6 mm
Threading
Thread Pitch — mm (TP)6.0 mm
Thread Pitch — in (TP)0.236"
Tool Information
Reference Numbers
EDP Number6755389
EAN3603602907554
File Type Download
TN 22NN600TR:T8030 — Line Drawing PDF Download
