SPG 422 T00420:TC100

SPG 422 T00420:TC100

SKU DOR6755444
by Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.06 - $38.06
$38.06
$38.06 - $38.06
$38.06

Sold in packs of: 10

Single-sided turning insert, square with 11° clearance inscribed circle diameter of 1/2", 1/8" thick, 1/32" nose radius, indexing accuracy according to ISO-tolerance class-G, cutting edges with facet T-land -20°/0.004", in grade TC100, an uncoated ceramic within ISO range K01-K15, for high-speed machining of cast-irons

For more information about this product, click here

Identification
Ordering Code (ANSI)SPG 422 T00420:TC100
Product Name (ISO)SPGN 120308 T01020:TC100
GradeTC100
Chipbreaker (CBMD)No chipbreaker
Product Number6755444
Product FamilySPGN CER

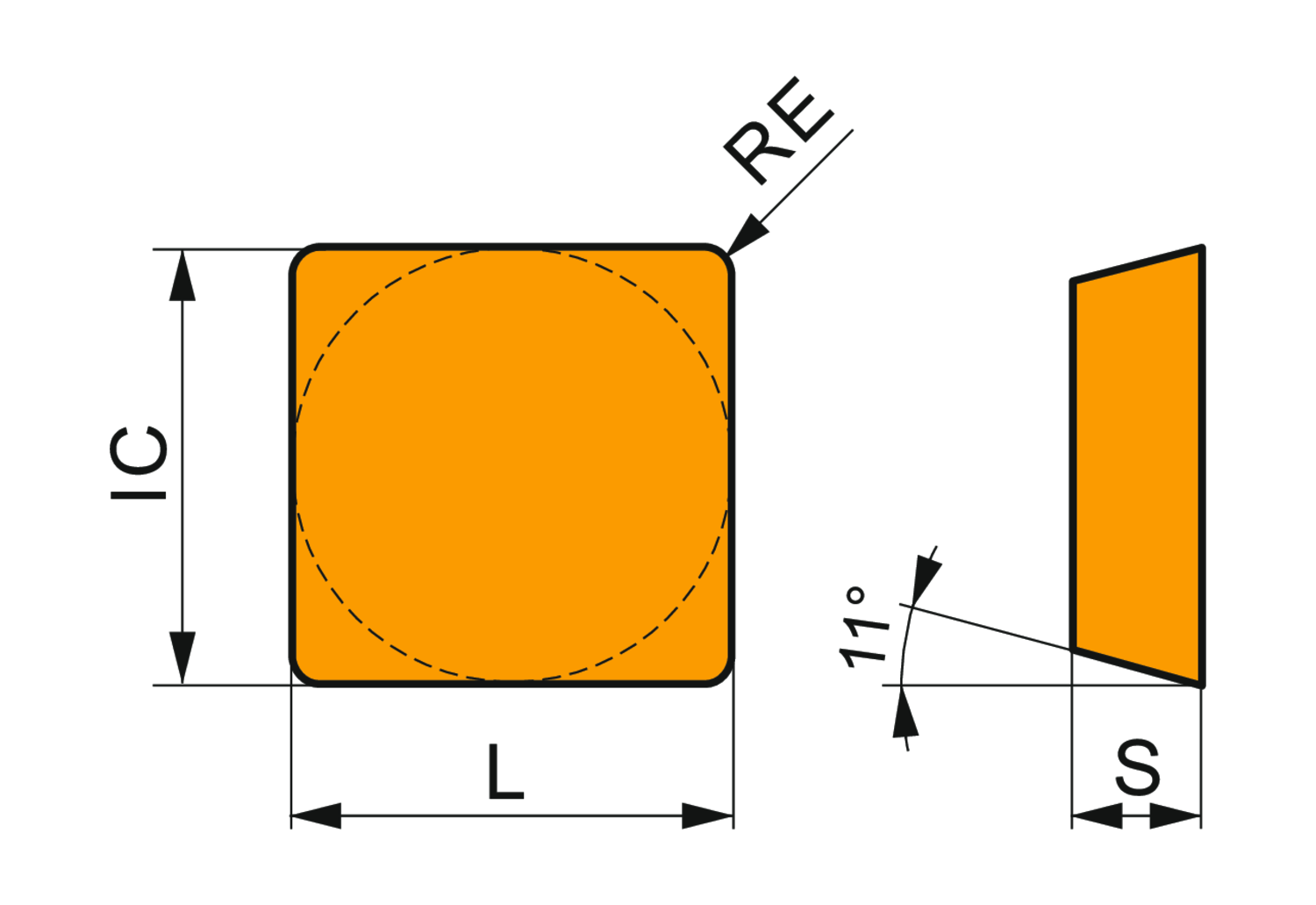

Insert Geometry
Insert DesignSPGN
Insert Shape Code (SC)S - square
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Reference Numbers
EDP Number6755444
EAN3603602908100
File Type Download
SPG 422 T00420:TC100 — Line Drawing PDF Download
