TN 22NN350-500M:T8030

TN 22NN350-500M:T8030

SKU DOR6755659
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.60 - $42.60
$42.60
$42.60 - $42.60
$42.60

Sold in packs of: 5

Single-sided threading insert, triangular with an inscribed circle diameter of .500", for right and left hand cutting partial profile of ISO-metric and UN internal threads with 3.5 to 5" pitch and 7 to 5TPI, T8030 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40/M20-M35 and K20-K40 for machining of steel, stainless-steel and cast-iron in combination with a SI(RL)-S thread turning bar

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 22NN350-500M:T8030
GradeT8030
Chipbreaker (CBMD)No chipbreaker
Product Number6755659
Product FamilyTN 60°-S PP INT

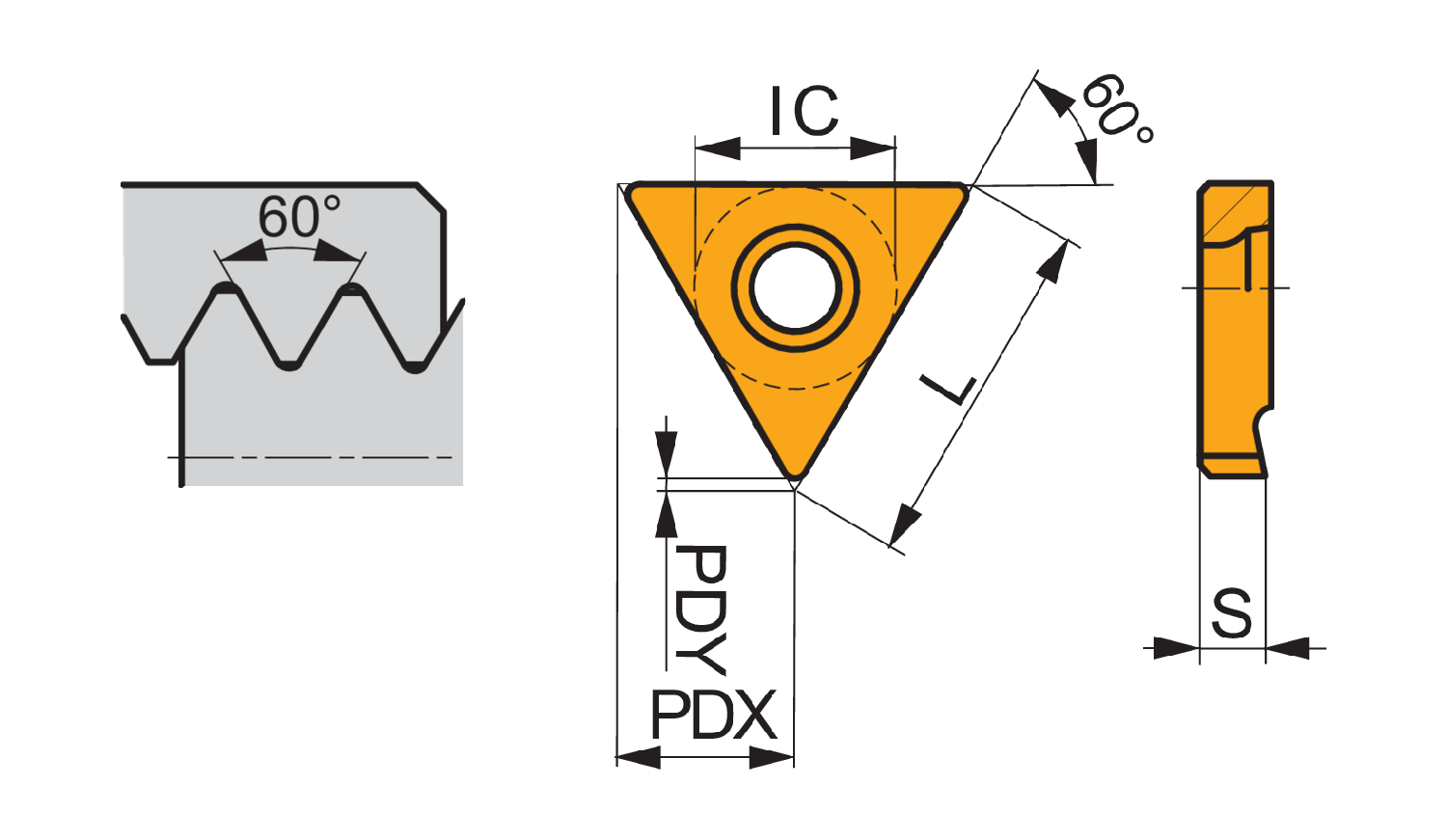

Insert Geometry
Insert DesignTN 60°-S PP INT
Insert Shape Code (SC)T - triangular 60° included angle
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.181"
Insert Thickness — mm (S)4.6 mm
Tool Information
Reference Numbers
EDP Number6755659
EAN3603602910257
File Type Download
TN 22NN350-500M:T8030 — Line Drawing PDF Download
