SIR-S 2532 S 22-A

Name: SIR-S 2532 S 22-A
Brand: Dormer Pramet
SKU: DOR6757419
Price: 381.0 CAD
Availability: InStock

SKU DOR6757419

by Dormer Pramet

Primary Use:

Availability in Distribution Centers:

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

For more information about this product, click here

$381.00 - $381.00

$381.00

$381.00 - $381.00

$381.00

Sold in packs of: 1

Screw clamp thread turning bar with 1.5° helix angle for holding a triangle shaped insert with an inscribed circle diameter of 12.7mm (designation TN 22NN.. ), right hand special design with straight shank made of steel without coolant hole, 32mm diameter and 250mm overall length for internal threading

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)	SIR-S 2532 S 22-A
Product Number	6757419
Product Family	SI(RL)-S

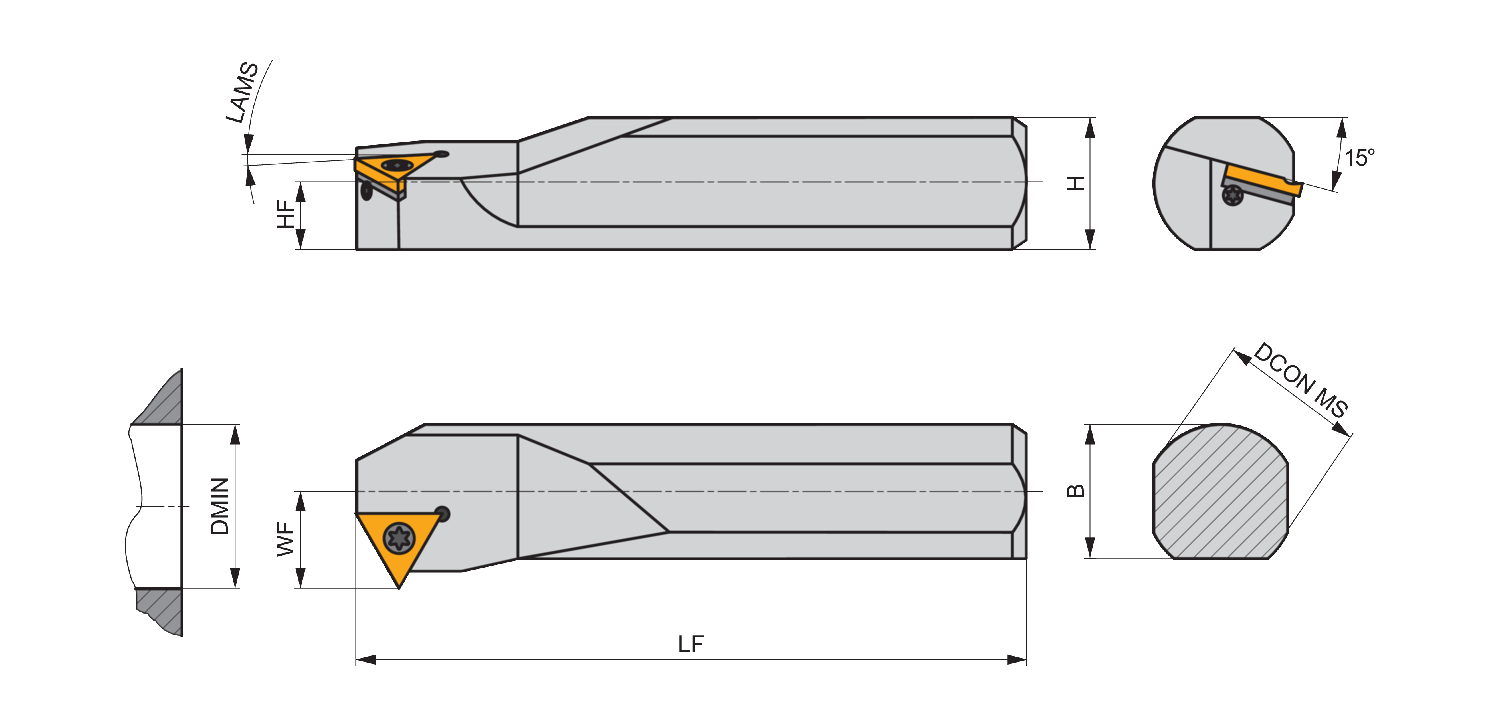

Dimensions
Functional Length — in (LF)	9.843"
Functional Length — mm (LF)	250.0 mm
Connection Dia. — in (DCON)	1.26"
Connection Dia. — mm (DCON)	32.0 mm
Shank Height — mm (H)	0.984 mm
Min. Bore Dia. — in (DMIN)	1.535"
Tool Information
Direction of Tool	Left
Reference Numbers
EDP Number	6757419
EAN	3603602927750

File	Type	Download
SIR-S 2532 S 22-A — 3D Model	STP	Download
SIR-S 2532 S 22-A — Line Drawing	PDF	Download
