CNMG 432-SF:H07

CNMG 432-SF:H07

SKU DOR6921013
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.54 - $10.54
$10.54
$10.54 - $10.54
$10.54

Sold in packs of: 10

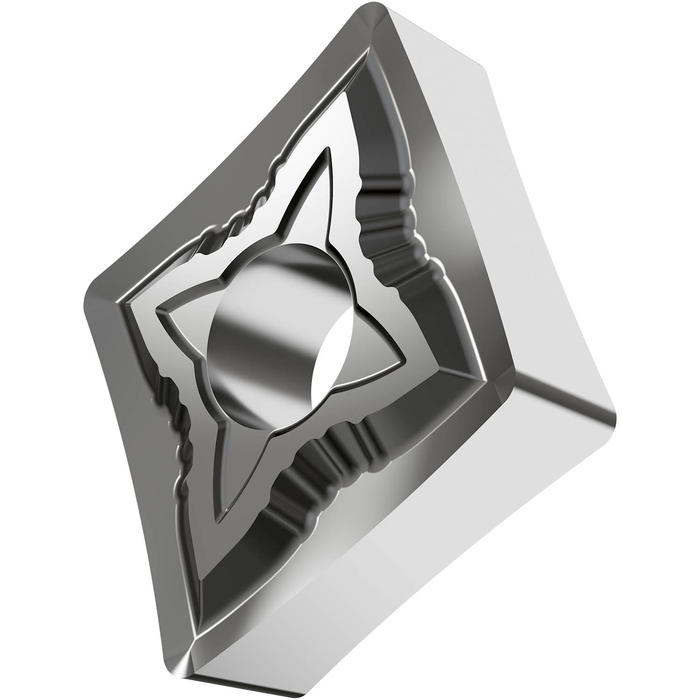

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker SF, in grade H07, an uncoated WC-Co carbide within ISO ranges K10 - K25 and S01 - S20, for fine to medium machining of cast-irons and super-alloys

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 432-SF:H07
Product Name (ISO)CNMG 120408E-SF:H07
GradeH07
Chipbreaker (CBMD)SF
Product Number6921013
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Insert Thickness — in (S)0.187"
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Tool Information
Reference Numbers
EDP Number6921013
EAN3603603074378
Material Group Suitability
M — Stainless Steel Possible use
K — Cast Iron Primary use
N — Non-Ferrous Metals Possible use
S — High Temperature Alloys Primary use
