LNMT 311240SN-M:T9315

LNMT 311240SN-M:T9315

SKU DOR7661699
by Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.57 - $78.57
$78.57
$78.57 - $78.57
$78.57

Sold in packs of: 5

Single-sided negative turning insert, rectangular with a main edge length of 31.75mm, 4.76 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker M with rounded cutting edges with facet, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05-P25, for fine to heavy machining of steels

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMT 311240SN-M:T9315
GradeT9315
Chipbreaker (CBMD)M
Product Number7661699
Product FamilyLNMT

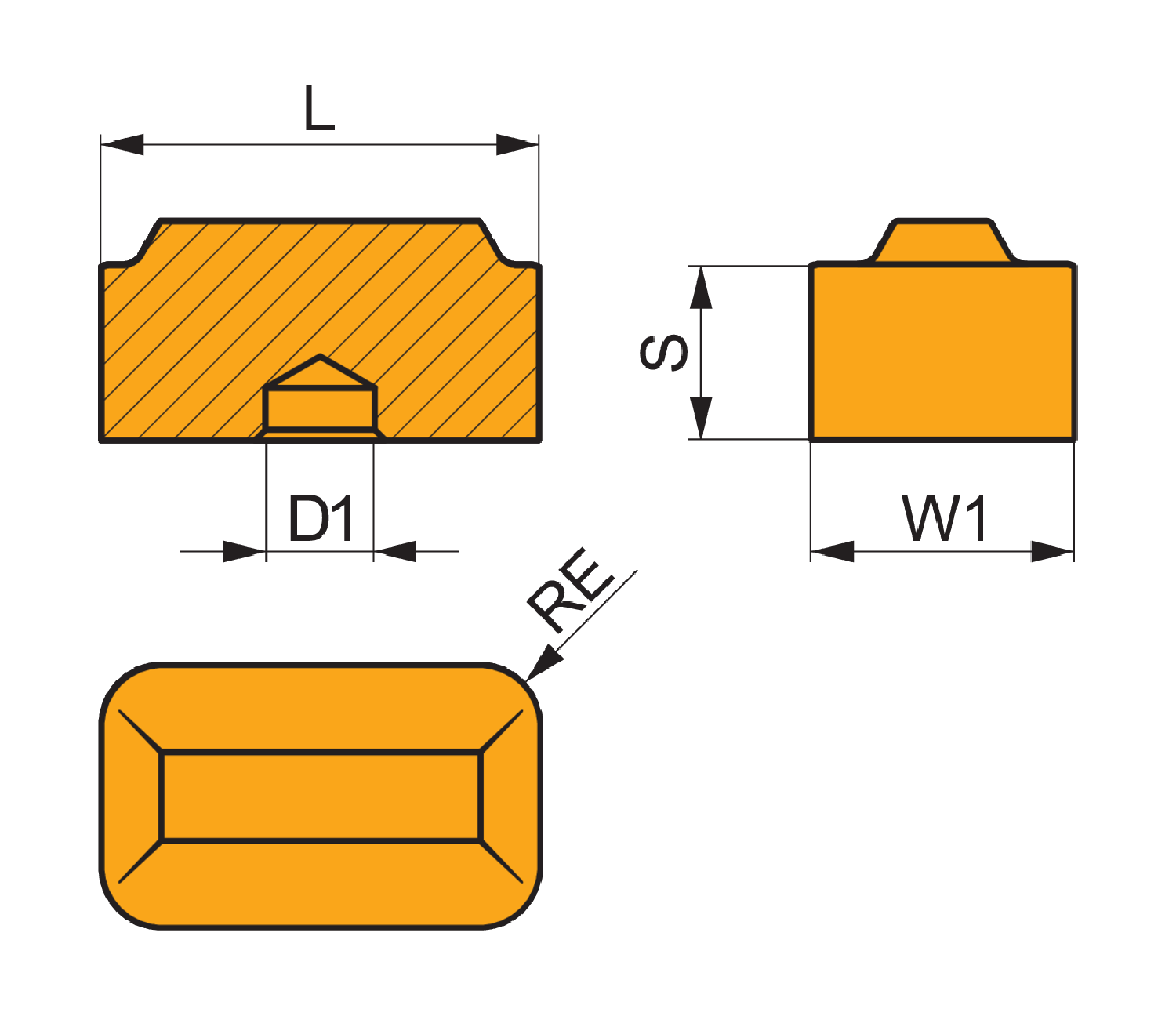

Insert Geometry
Insert DesignLNMT
Insert Shape Code (SC)L - rectangular
Insert Thickness — in (S)0.5"
Insert Thickness — mm (S)12.7 mm
Corner Radius — in (RE)0.187"
Corner Radius — mm (RE)4.76 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number7661699
EAN3603603550070
File Type Download
LNMT 311240SN-M:T9315 — Line Drawing PDF Download
