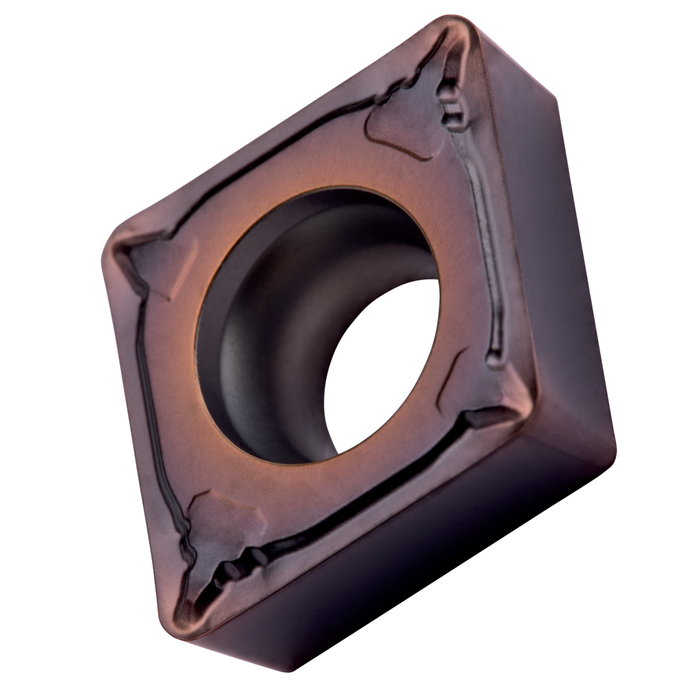

CCMT 32.52-UR:T8430

CCMT 32.52-UR:T8430

by Dormer Pramet
Primary Use: P - Steel and Cast Steel Possible Use: M - Stainless Steel K - Cast Iron

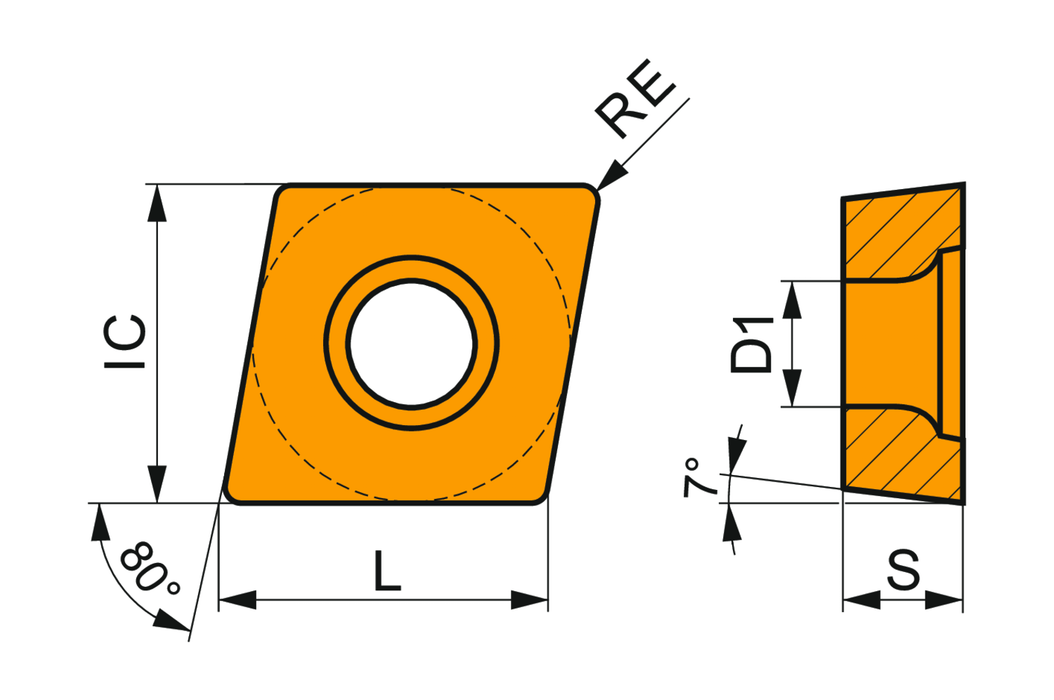

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to heavy machining of steels

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$10.71 - $10.71
$10.71 - $10.71
$10.71
$10.71 - $10.71
$10.71
Enjoy same-day shipping on orders placed before 2:30 PM MST. For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Insert Design: CCMT

Insert Shape Code: C - rhombic 80° included angle

Insert Shape Code: gid://shopify/Metaobject/130432860222

Insert Thickness: 0.156

Steel and Cast Steel: Primary use

Stainless Steel: Possible use

Cast Iron: Possible use

Inscribed Circle Diameter: 0.375

Chip Breaker: UR

Grade: T8430

Corner Radius - in: 0.031

Corner Radius - mm: 0.8

EDP: 7973821

EAN: 3603603814219

MFG Part Number: 7973821
