CCMT 432-UR:T8430

CCMT 432-UR:T8430

SKU DOR7973827
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$17.00 - $17.00
$17.00
$17.00 - $17.00
$17.00

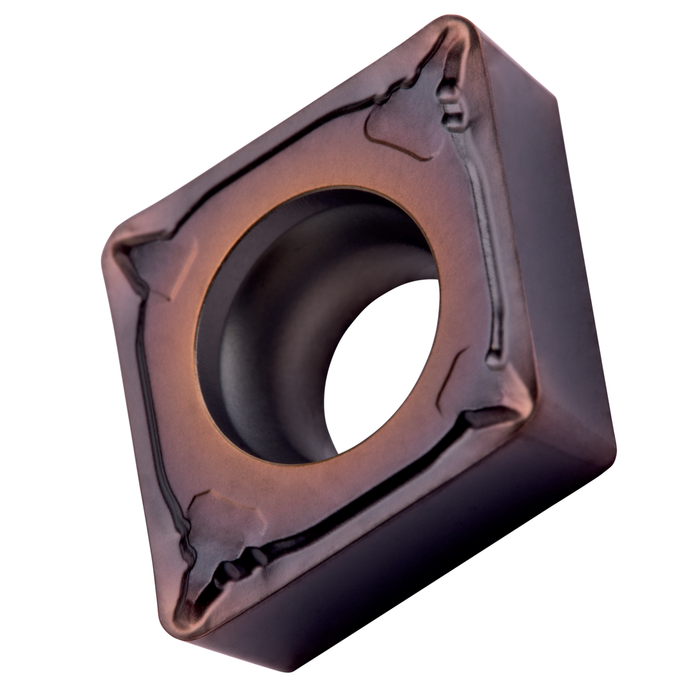

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to heavy machining of steels

For more information about this product, click here

Identification
Ordering Code (ANSI)CCMT 432-UR:T8430
Product Name (ISO)CCMT 120408E-UR:T8430
GradeT8430
Chipbreaker (CBMD)UR
Product Number7973827
EDP Number7973827
EAN3603603814271
Package Quantity10
Product FamilyCCMT

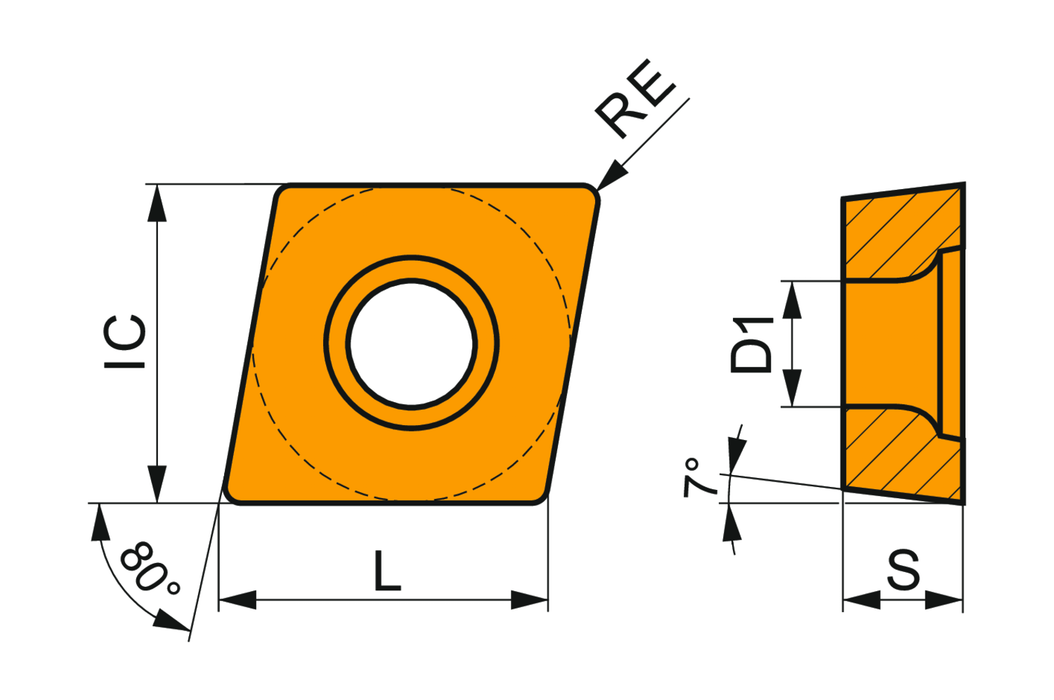

Insert Geometry
Insert DesignCCMT
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Insert Thickness — in (S)0.187"
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Measurement StandardMetric
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Possible use
K — Cast Iron Possible use
