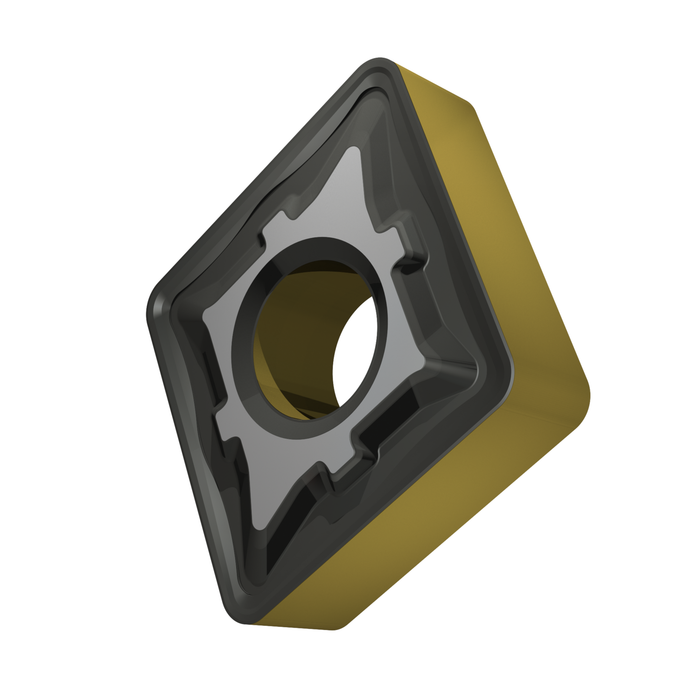

CNMG 433-R:T9425

CNMG 433-R:T9425

SKU DOR8985584
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.71 - $14.71
$14.71
$14.71 - $14.71
$14.71

Sold in packs of: 10
Double-sided Negative turning insert, C - rhombic 80° included angle, size 12 with corner radius 1.2 mm. Combination of chipbreaker R chip breaker is robust and designed for roughing of Steels and Cast irons. It features slightly positive rake angle and negative/stable, extra-wide double T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMG 433-R:T9425
GradeT9425
Chipbreaker (CBMD)R
Product Number8985584
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.236"
Depth of Cut Max — mm (APMX)6.0 mm
Tool Information
Tool DesignCN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985584
EAN3603604770422
Material Group Suitability
P — Steel and Cast Steel Primary use
K — Cast Iron Primary use
File Type Download
CNMG 433-R:T9425 — Line Drawing PDF Download
