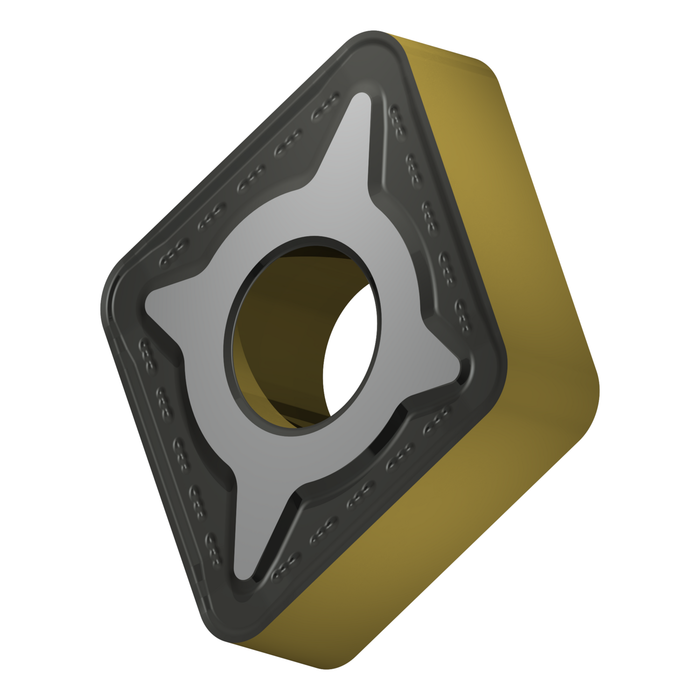

CNMG 646-RM:T9425

CNMG 646-RM:T9425

SKU DOR8985607
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.83 - $31.83
$31.83
$31.83 - $31.83
$31.83

Sold in packs of: 10
Double-sided Negative turning insert, C - rhombic 80° included angle, size 0 with corner radius 2.4 mm. Combination of chipbreaker RM chip breaker is robust and the first choice for roughing of Steels. It features positive rake angle and stable, wide T-land. It's also suitable for Stainless steels, Cast irons, and conditionally for Super-alloys. and MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. is suitable for materials: P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMG 646-RM:T9425
GradeT9425
Chipbreaker (CBMD)RM
Product Number8985607
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - rhombic 80° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.095"
Corner Radius — mm (RE)2.4 mm
Tool Information
Tool DesignCN
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8985607
EAN3603604770651
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Primary use
S — High Temperature Alloys Possible use
File Type Download
CNMG 646-RM:T9425 — Line Drawing PDF Download
