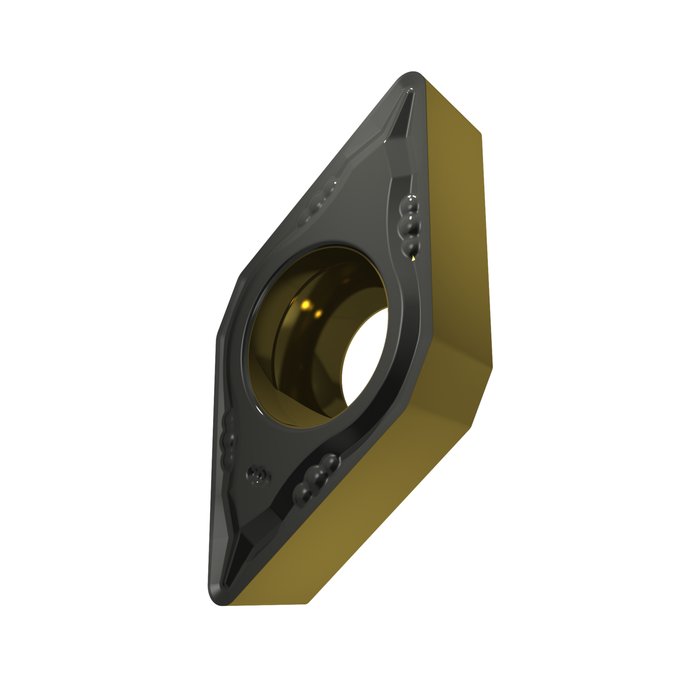

DCMT 32.52-FM:T9425

DCMT 32.52-FM:T9425

SKU DOR8183326
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.33 - $16.33
$16.33
$16.33 - $16.33
$16.33

Sold in packs of: 10
Single-sided Positive turning insert, D - rhombic 55° included angle, size 11 with corner radius 0.8 mm. Combination of chipbreaker FM chip breaker is versatile and the first choice for finishing of Steels. It features positive rake angle and positive, narrow T-land. It's also suitable for Stainless steels, and conditionally for Cast irons and Non-ferrous alloys. MT-CVD-coated, functionally graded substrate T9425, designed primarily for P-group materials. Suitable for materials: M - Stainless steel, P - Steel and cast steel and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMT 32.52-FM:T9425
Product Name (ISO)DCMT 11T308E-FM:T9425
GradeT9425
Chipbreaker (CBMD)FM
Product Number8183326
Product FamilyDCMT

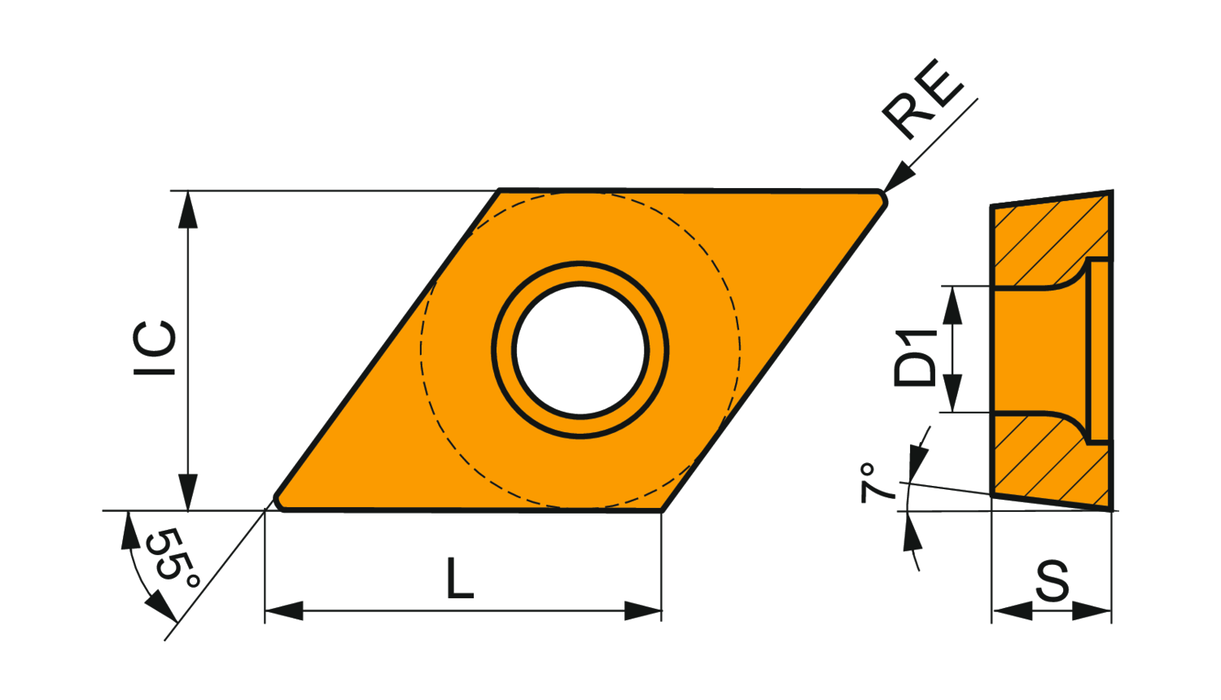

Insert Geometry
Insert DesignDCMT
Insert Shape Code (SC)D - rhombic 55° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
SubstrateFunctionally graded substrate
Reference Numbers
EDP Number8183326
EAN3603603953062
Material Group Suitability
P — Steel and Cast Steel Primary use
M — Stainless Steel Primary use
K — Cast Iron Possible use
