RCMW 0803MO:T5405

RCMW 0803MO:T5405

SKU DOR8985037
by Dormer Pramet
Primary Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$11.40 - $11.40
$11.40
$11.40 - $11.40
$11.40

Sold in packs of: 10

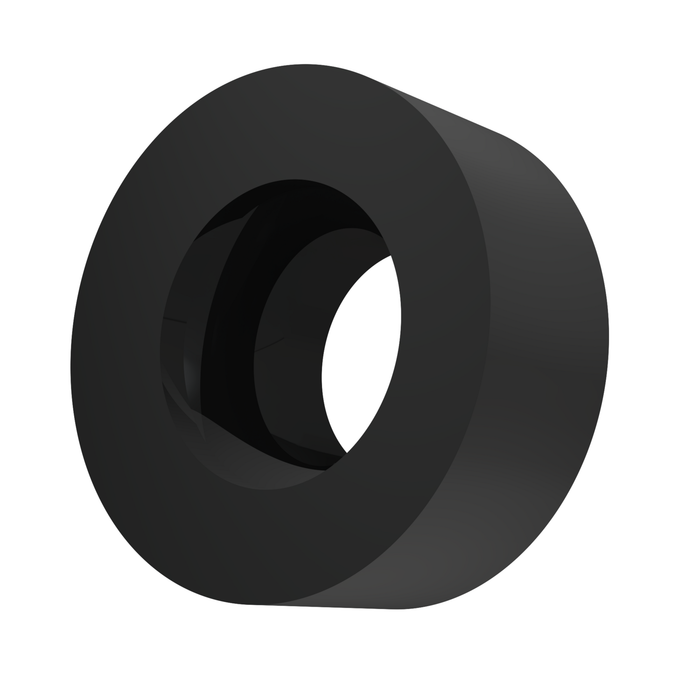

Single-sided Positive turning insert, R - round, size 8 with corner radius [ISO_CornerRadius_MET_NUM] mm. Combination of chipbreaker .CMW flat insert is designed for medium machining of Cast irons. It features neutral rake angle without T-land. It's also conditionally suitable for Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Slightly interrupted cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMW 0803MO:T5405
GradeT5405
Chipbreaker (CBMD)No chipbreaker
Product Number8985037
Product FamilyRCMW
Insert Geometry
Insert DesignRCMW
Insert Shape Code (SC)R - round
Insert Geometry
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Tool DesignRC
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8985037
EAN3603604774444
Material Group Suitability
K — Cast Iron Primary use
File Type Download
RCMW 0803MO:T5405 — Line Drawing PDF Download
