VBMT 331-RM:T5405

VBMT 331-RM:T5405

SKU DOR8985051
by Dormer Pramet
Primary Use: Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.86 - $22.86
$22.86
$22.86 - $22.86
$22.86

Sold in packs of: 10

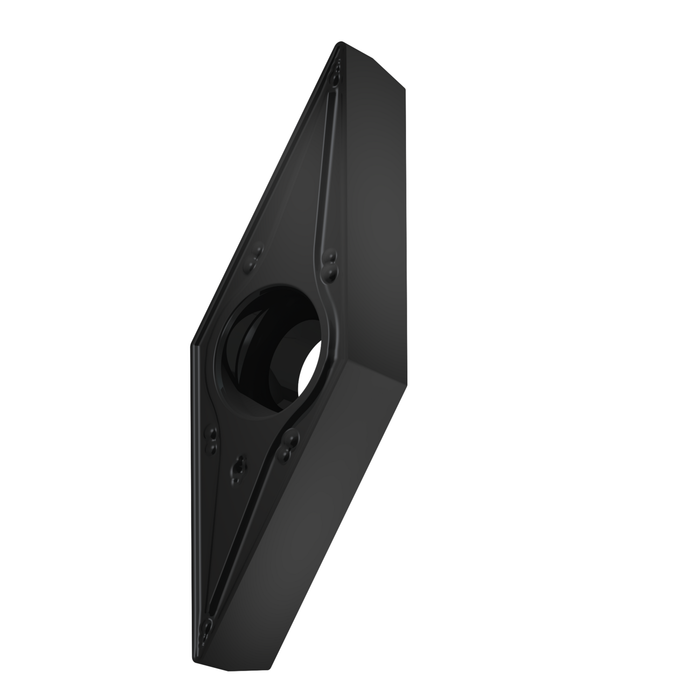

Single-sided Positive turning insert, V - rhombic 35° included angle, size 16 with corner radius 0.4 mm. Combination of chipbreaker RM chip breaker is robust and the first choice for roughing of Steels and Cast irons. It features positive rake angle and stable, wide T-land. It's also suitable for Stainless steels, and conditionally for Super-alloys and Hard materials. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content) and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VBMT 331-RM:T5405
GradeT5405
Chipbreaker (CBMD)RM
Product Number8985051
Product FamilyVBMT

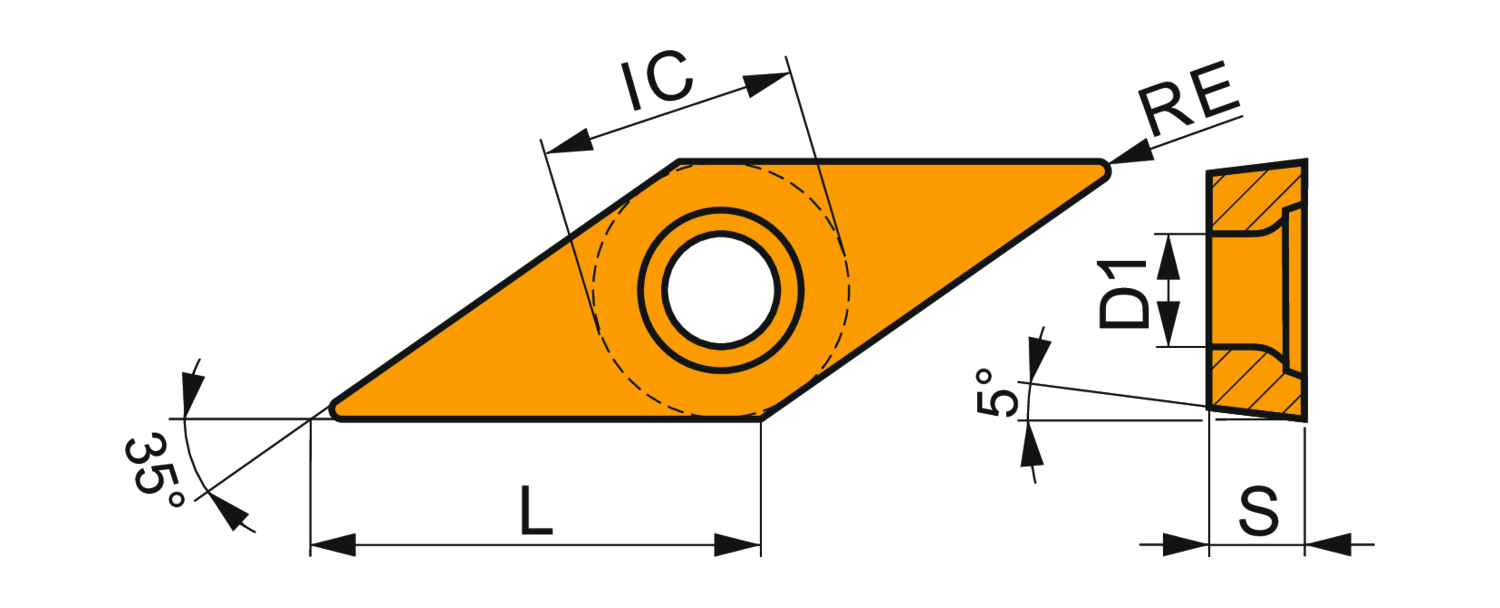

Insert Geometry
Insert DesignVBMT
Insert Shape Code (SC)V - rhombic 35° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.525 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.142"
Depth of Cut Max — mm (APMX)3.6 mm
Tool Information
Tool DesignVB
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8985051
EAN3603604774581
Material Group Suitability
P — Steel and Cast Steel Possible use
K — Cast Iron Primary use
File Type Download
VBMT 331-RM:T5405 — Line Drawing PDF Download
