VCGT 2.522-NF2:T5405

VCGT 2.522-NF2:T5405

SKU DOR8985063
by Dormer Pramet
Possible Use:
Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.21 - $20.21
$20.21
$20.21 - $20.21
$20.21

Sold in packs of: 10

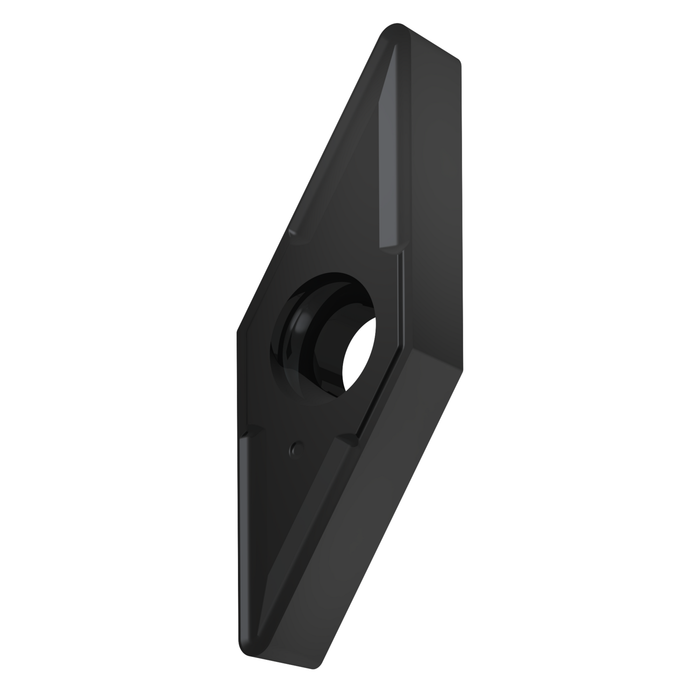

Single-sided Positive turning insert, V - rhombic 35° included angle, size 13 with corner radius 0.8 mm. Combination of chipbreaker NF2 chip breaker is sharp and the first choice for finishing of Stainless steels. It features positive rake angle without T-land. It's also suitable for Super-alloys, and conditionally for Steels, Cast irons and Non-ferrous alloys. and MT-CVD-coated, WC-Co based substrate T5405. is suitable for materials: [MA3] and Continuous cut.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGT 2.522-NF2:T5405
GradeT5405
Chipbreaker (CBMD)NF2
Product Number8985063
Product FamilyVCGT

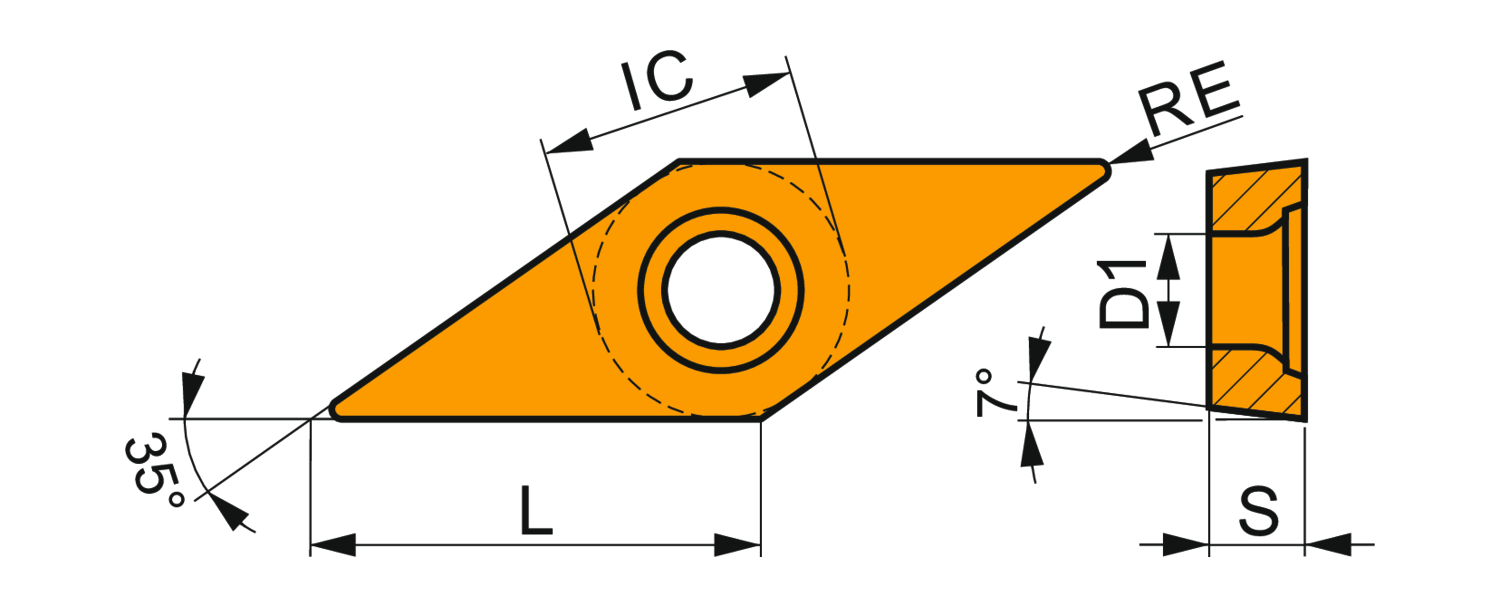

Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - rhombic 35° included angle
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Tool DesignVC
SubstrateWC-Co based substrate
Reference Numbers
EDP Number8985063
EAN3603604774703
Material Group Suitability
P — Steel and Cast Steel Possible use
K — Cast Iron Possible use
File Type Download
VCGT 2.522-NF2:T5405 — Line Drawing PDF Download
