A100O

A100O

SKU DOR5966776
by Dormer Pramet
Primary Use: Possible Use:

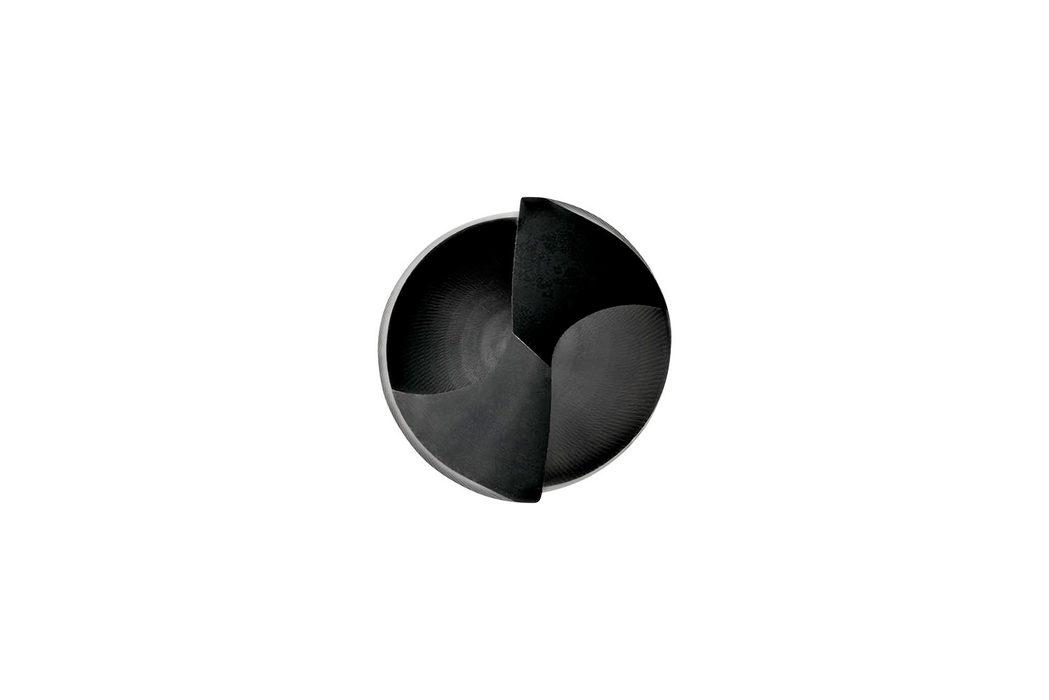

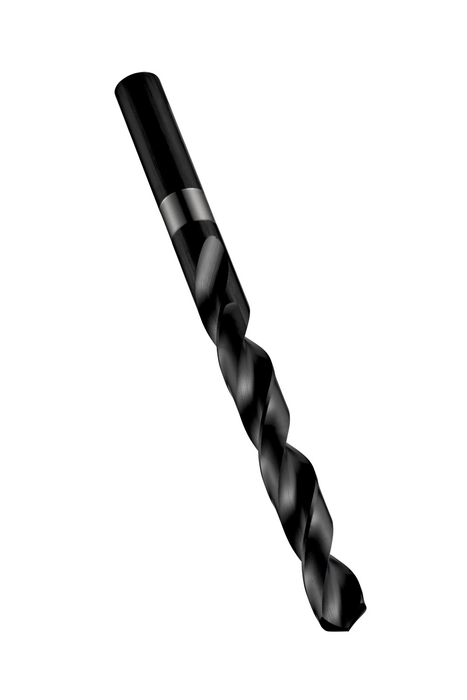

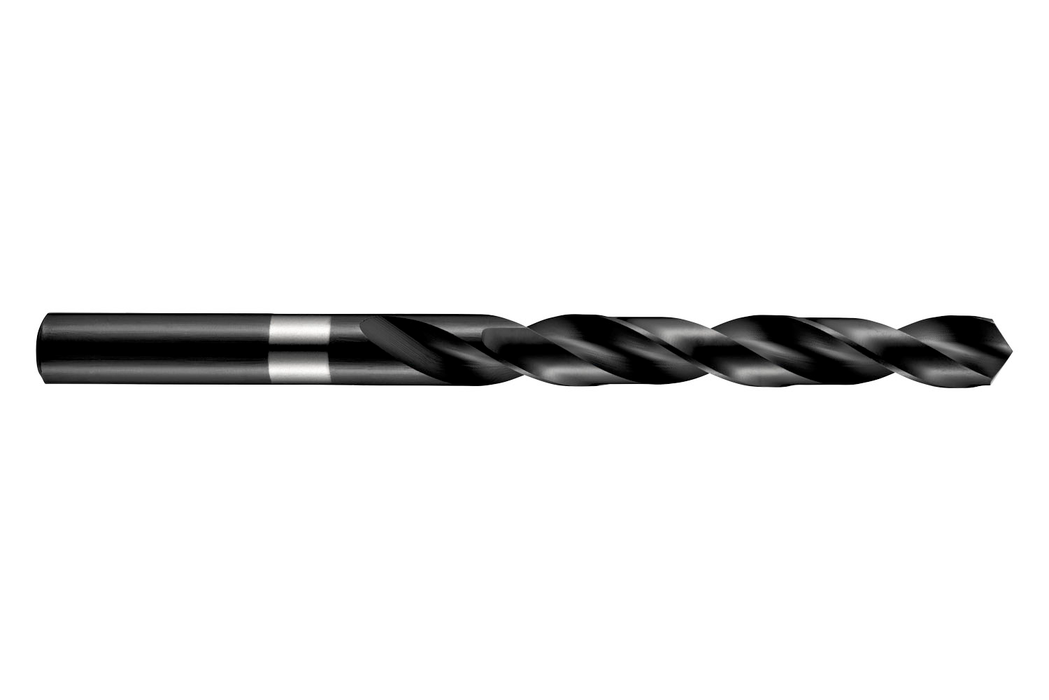

Jobber length drill with straight shank, diameter 0.3160" (O) with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$14.70 - $14.70
$14.70
$14.70 - $14.70
$14.70
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.316

Cutting Diameter - mm (DC): 8.03

Drill Point Angle - deg: 118

Flute Length: 2.9528

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 4.6063

Connetion Diameter: 0.3161

Tool Direction: Right

Shank: Cylindrical shank

Letter: O

Grade: Steam Tempered

EDP: 29503

EAN: 7320760029503

MFG Part Number: 5966776
