A0225/64

A0225/64

SKU DOR5966840
by Dormer Pramet
Primary Use:

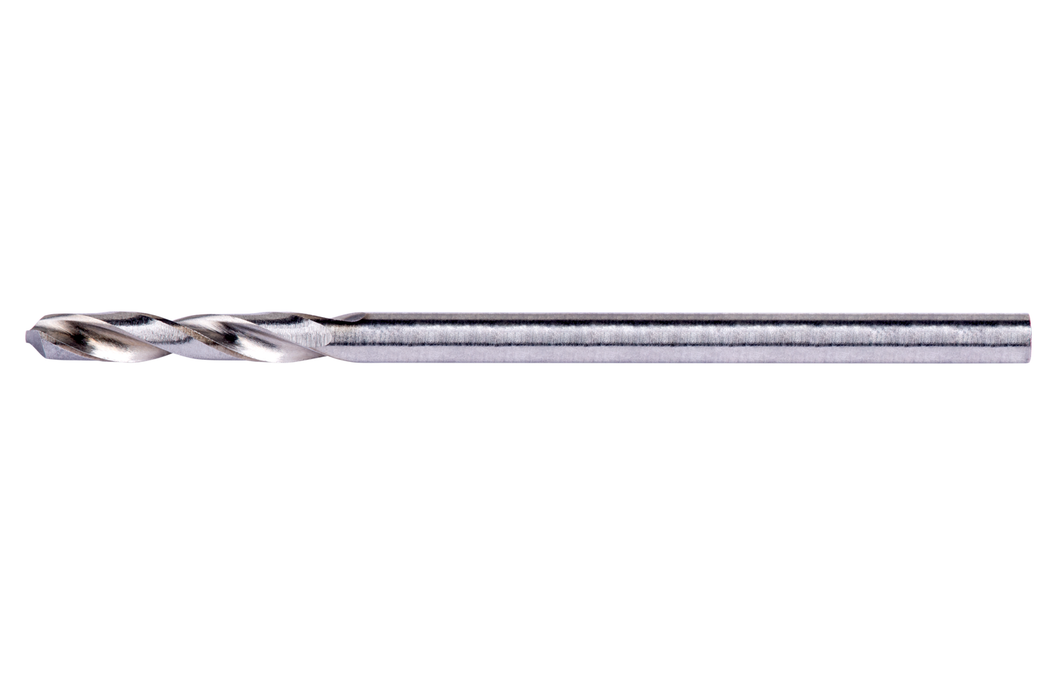

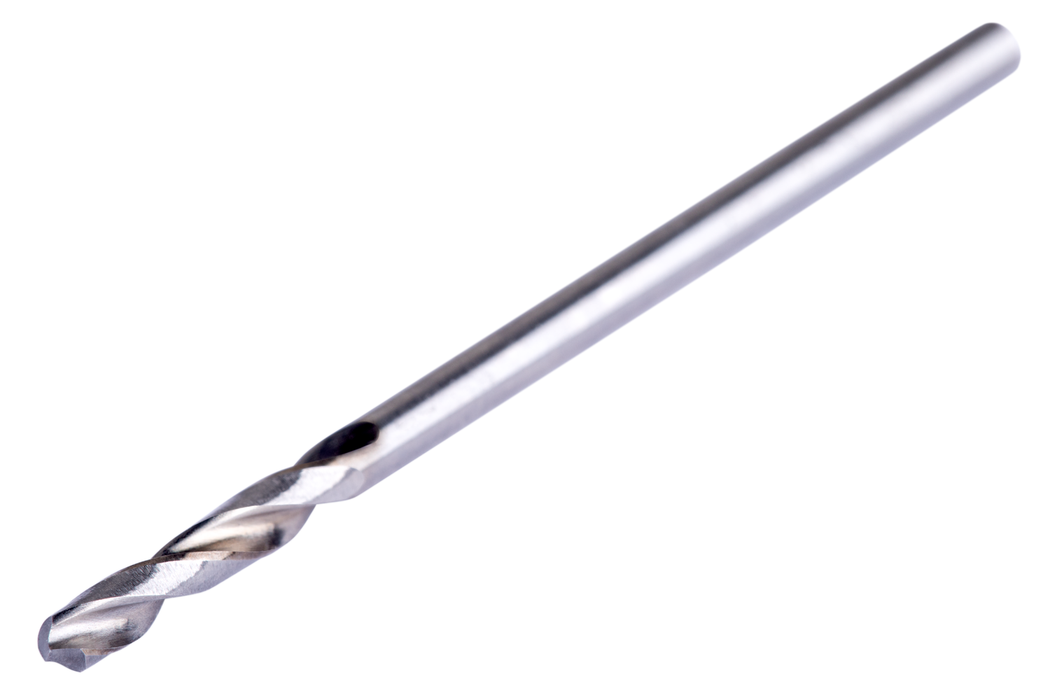

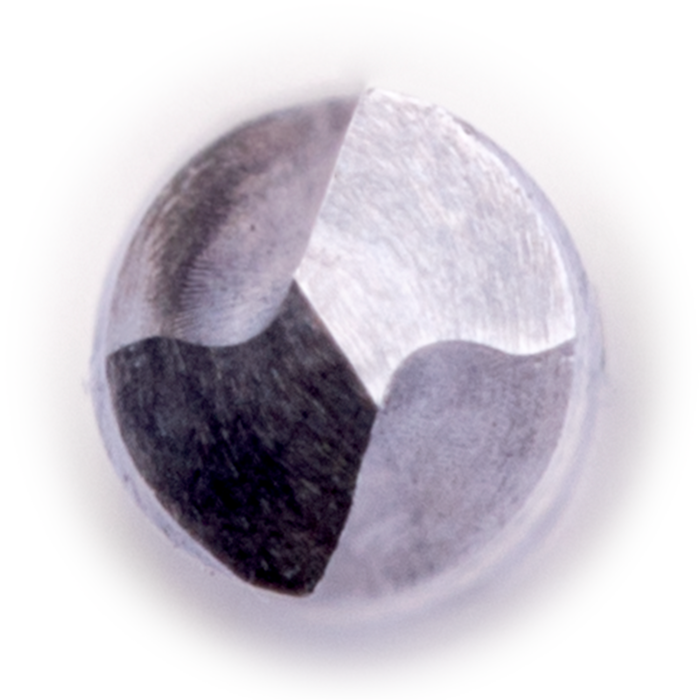

Stub length drill with straight shank, diameter 0.0781" (5/64) with an overall length of 43mm and flute length of 17mm according to DIN/ANSI standard with 135° conical point, HSS with bright finish for 2.5xD drilling without pecking in steel and cast iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$2.74 - $2.74
$2.74
$2.74 - $2.74
$2.74
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.0781

Cutting Diameter - mm (DC): 1.98

Drill Point Angle - deg: 135

Flute Length: 0.6693

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.6929

Connetion Diameter: 0.078

Tool Direction: Right

Shank: Cylindrical shank

Fractional: 5/64

Grade: Bright

EDP: 600566

EAN: 7320760600566

MFG Part Number: 5966840
