A012N10

Name: A012N10
Brand: Dormer Pramet
SKU: DOR5966910
Price: 3.24 CAD
Availability: InStock

SKU DOR5966910

by Dormer Pramet

Primary Use: Possible Use:

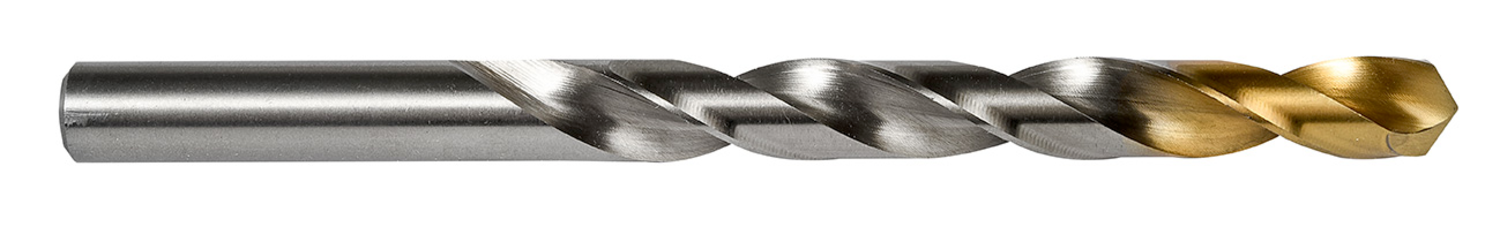

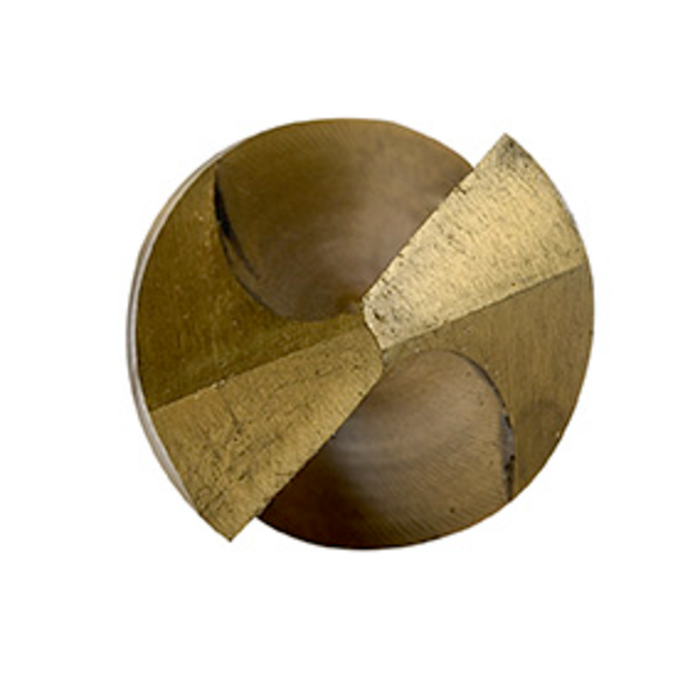

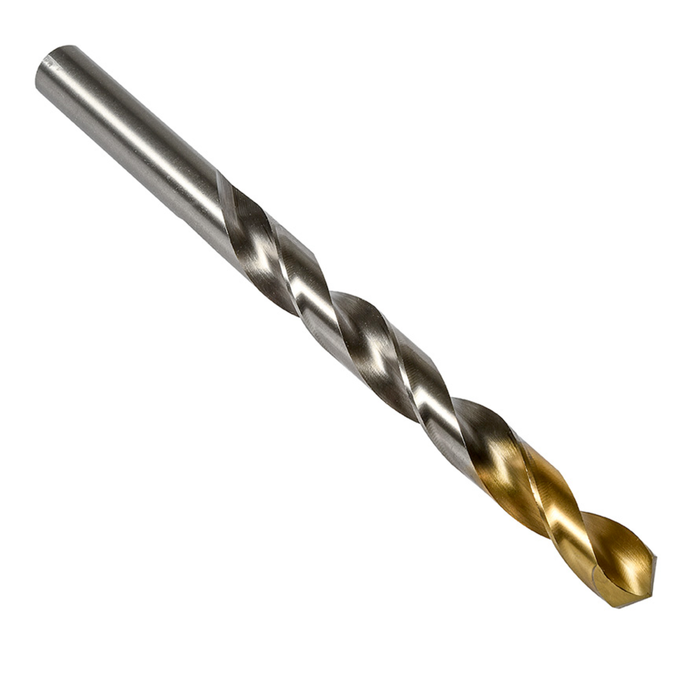

Jobber length drill with straight shank, diameter 0.1935" (N10) with an overall length of 3.5/8" and flute length of 2.7/16" according to ANSI standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Inventory

🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here

$3.24 - $3.24

$3.24

$3.24 - $3.24

$3.24

For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.1935

Cutting Diameter - mm (DC): 4.92

Drill Point Angle - deg: 118

Flute Length: 2.4375

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.625

Connetion Diameter: 0.1935

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright/TiN

EDP: 571316

EAN: 7320760571316

MFG Part Number: 5966910
