A012N12

A012N12

SKU DOR5966919
by Dormer Pramet
Primary Use: Possible Use:

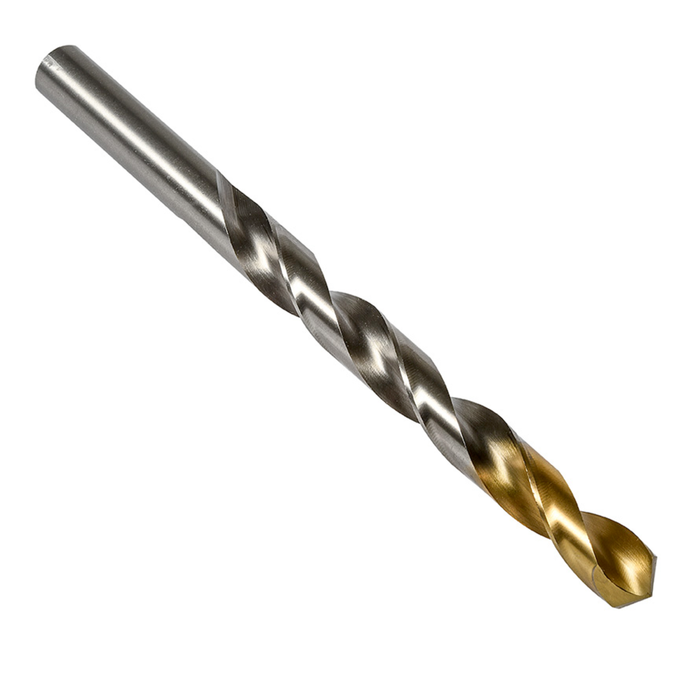

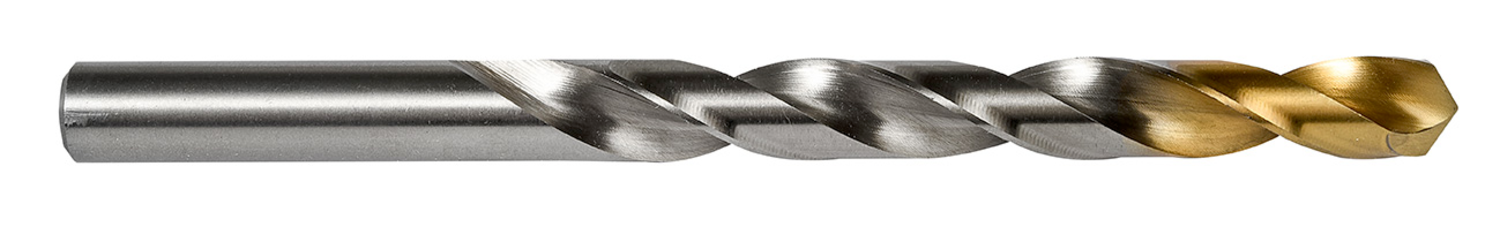

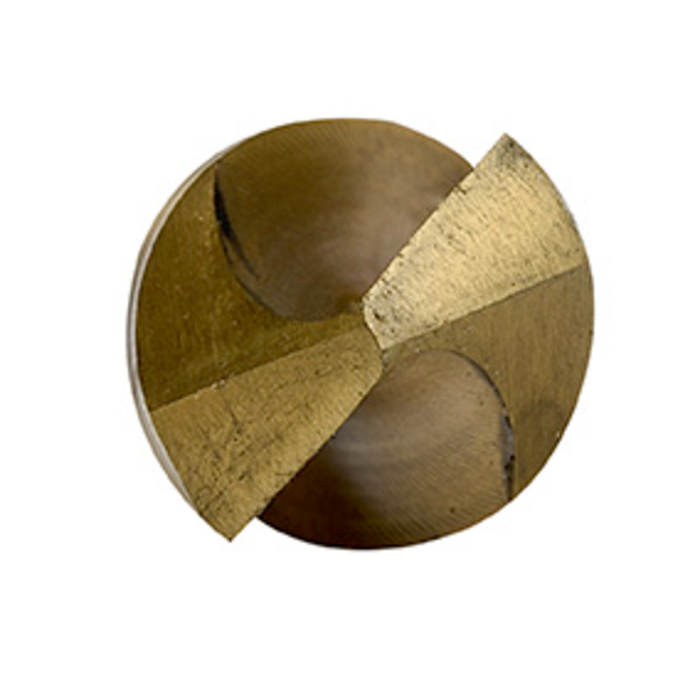

Jobber length drill with straight shank, diameter 0.1890" (N12) with an overall length of 3.1/2" and flute length of 2.5/16" according to ANSI standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 10

For more information about this product, click here
$3.00 - $3.00
$3.00
$3.00 - $3.00
$3.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.189

Cutting Diameter - mm (DC): 4.8

Drill Point Angle - deg: 118

Flute Length: 2.3125

Lenxth x Diameter Ratio: 4

Overall Length (OAL): 3.5

Connetion Diameter: 0.189

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright/TiN

EDP: 571330

EAN: 7320760571330

MFG Part Number: 5966919
